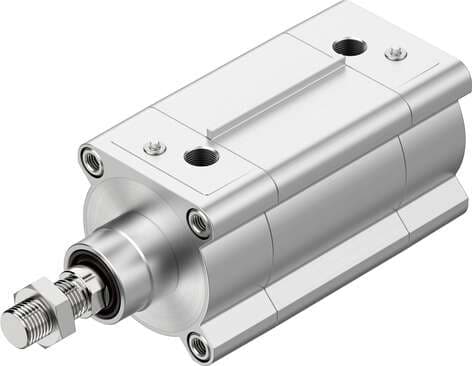

177852 Festo Pneumatic Actuators
Part#:177852
Alt. Part#:DNC-15/8"-20"-P-A
Manufacturer:Festo
Category:Pneumatic Actuators
Product Lifecycle:Active
Product description
profile cylinder DNC-15/8"-20"-P-A per ISO 15552, with profile cylinder barrel, with sensing option, non-adjustable cushioning. Stroke: 20 ", Piston diameter: 1 5/8", Piston rod thread: 1/2-20 UNF-2A, Based on the standard: ISO 15552 (previously also VDMA
Product Details
- Type code DNC
- Piston rod thread 1/2-20 UNF-2A
- Position sensing For proximity sensor
- Mode of operation Double-acting
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pneumatic connection NPT1/4-18
- Maritime classification See certificate
- Based on norm ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290)
- Mounting position Any
- Operating pressure 0.06 MPa ... 1.2 MPa
- Stroke 508 mm
- Variants Piston rod at one end
- Piston rod end External thread
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Theoretical force at 6 bar, retracting 633 N
- Basic weight with 0 mm stroke 800 g
- Note on materials RoHS-compliant
- Cushioning Elastic cushioning rings/pads at both ends
- Symbol 00991217
- Impact energy in the end positions 0.2 J
- Additional weight per 10 mm stroke 45 g
- Cover material Die-cast aluminum Coated
- Piston rod material High-alloy steel
- Piston diameter 1 5/8"
- Design Piston Profile barrel
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Theoretical force at 6 bar, advancing 754 N
- Type of mounting With internal thread With accessories
- Seals material TPE-U(PU)
- Ambient temperature -20 °C ... 80 °C
- Material of cylinder barrel Wrought aluminum alloy Smooth anodized
- Moving mass at 0 mm stroke 307 g
- Additional moving mass per 10 mm stroke 16 g
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
