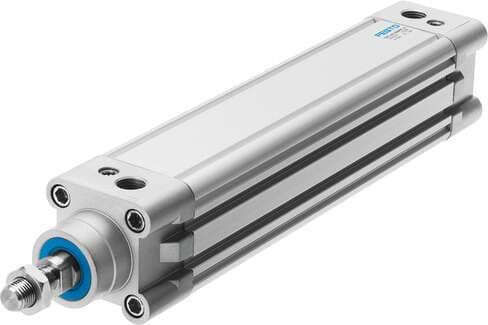

177999 Festo Pneumatic Actuators
Part#:177999
Alt. Part#:DNC-3"-2"-P-A
Manufacturer:Festo
Category:Pneumatic Actuators
Product Lifecycle:Active
Product description
profile cylinder DNC-3"-2"-P-A per ISO 15552, with profile cylinder barrel, with sensing option, non-adjustable cushioning. Stroke: 2 ", Piston diameter: 3", Piston rod thread: 3/4-16 UNF-2A, Based on the standard: ISO 15552 (previously also VDMA 24652, I
Product Details
- Design Piston Profile barrel
- Piston rod end External thread
- Variants Piston rod at one end
- Piston diameter 3"
- Mounting position Any
- Mode of operation Double-acting
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Impact energy in the end positions 0.9 J
- Type of mounting With internal thread With accessories
- Maritime classification See certificate
- Based on norm ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290)
- Operating pressure 0.06 MPa ... 1.2 MPa
- Theoretical force at 6 bar, advancing 3016 N
- Cover material Die-cast aluminum Coated
- Note on materials RoHS-compliant
- Type code DNC
- Piston rod thread 3/4-16 UNF-2A
- Symbol 00991217
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Theoretical force at 6 bar, retracting 2721 N
- Basic weight with 0 mm stroke 2790 g
- Material of cylinder barrel Wrought aluminum alloy Smooth anodized
- Stroke 50.8 mm
- Cushioning Elastic cushioning rings/pads at both ends
- Position sensing For proximity sensor
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Moving mass at 0 mm stroke 1131 g
- Additional moving mass per 10 mm stroke 38 g
- Seals material TPE-U(PU)
- Ambient temperature -20 °C ... 80 °C
- Additional weight per 10 mm stroke 106 g
- Pneumatic connection NPT3/8-18
- Piston rod material High-alloy steel
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
