178066 Festo Pneumatic Actuators
Part#:178066
Alt. Part#:DNC-4"-4"-PPV
Manufacturer:Festo
Category:Pneumatic Actuators
Product Lifecycle:Active
Product description

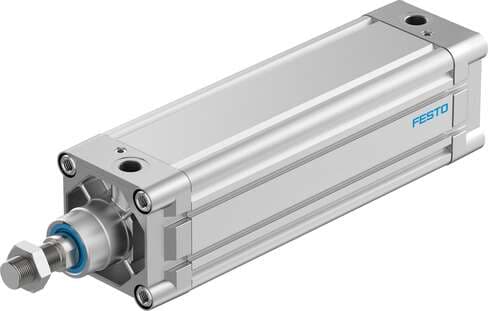

profile cylinder DNC-4"-4"-PPV As per ISO 15552, with profile cylinder barrel, with adjustable cushioning at both end positions. Stroke: 4 ", Piston diameter: 4", Piston rod thread: 3/4-16 UNF-2A, Based on the standard: ISO 15552 (previously also VDMA 246
Product Details
- Maritime classification See certificate
- Based on norm ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290)
- Position sensing None
- Ambient temperature -20 °C ... 80 °C
- Theoretical force at 6 bar, retracting 4418 N
- Cover material Die-cast aluminum Coated
- Mounting position Any
- Type code DNC
- Piston rod thread 3/4-16 UNF-2A
- Piston rod end External thread
- Variants Piston rod at one end
- Piston diameter 4"
- Design Piston Profile barrel
- Operating pressure 0.06 MPa ... 1.2 MPa
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Type of mounting With internal thread With accessories
- Seals material TPE-U(PU)
- Stroke 101.6 mm
- Cushioning Pneumatic cushioning, adjustable at both ends
- Symbol 00991232
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Cushioning length 32 mm
- Additional weight per 10 mm stroke 115 g
- Basic weight with 0 mm stroke 4653 g
- Material of cylinder barrel Wrought aluminum alloy Smooth anodized
- Mode of operation Double-acting
- Theoretical force at 6 bar, advancing 4712 N
- Additional moving mass per 10 mm stroke 38 g
- Piston rod material High-alloy steel
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Impact energy in the end positions 1.2 J
- Moving mass at 0 mm stroke 1544 g
- Pneumatic connection NPT1/2-14
- Note on materials RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
