183738 Festo Pneumatic Fittings

183738 on Powermatic Associates
Festo

Part#:183738

Alt. Part#:QSM-M7-1/8-I-U-M

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Only 4 left in stock. Order Now!

Jun 14, 2026

Product description

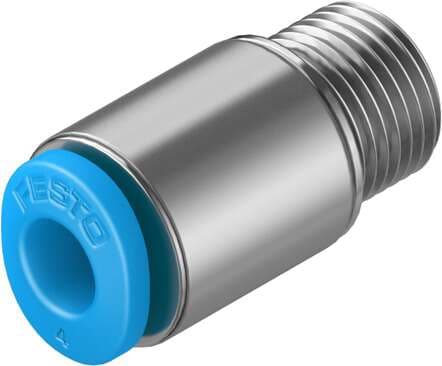

push-in fitting QSM-M7-1/8-I-U-M male thread with internal hexagon socket. Size: Mini, Nominal size: 0,079 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 1

Product Details

  • Operating pressure for entire temperature range
    -0.95 bar ... 9.997 bar
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Maritime classification
    See certificate
  • Mounting position
    Any
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Nominal tightening torque
    3.35 Nm
  • Product weight
    6.209 g
  • Releasing ring material
    POM
  • Nominal width
    2.007 mm
  • Pack size
    1
  • Tolerance for nominal tightening torque
    ± 20%
  • Note on materials
    RoHS-compliant
  • Type code
    QSM
  • Design
    Push-pull principle
  • Pneumatic connection 1
    External thread M7
  • Housing material
    Brass Nickel-plated
  • Size
    Mini
  • Type of seal on screwed trunnion
    Sealing ring
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Ambient temperature
    0 °C ... 60 °C
  • Releasing ring color
    Gray
  • Material of tube retaining claw
    High-alloy stainless steel
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 1/8"
  • Material of tubing seal
    NBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 183738 on Powermatic Associates is $4.06. Order now.

183738 Related Documents

183738 DataSheet.pdf

Similar products from: Festo Pneumatic Fittings

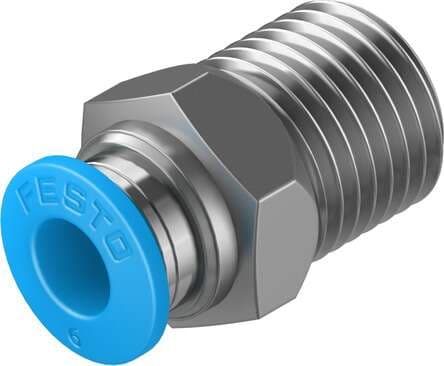

153003 on Powermatic Associates

153003

Festo

push-in fitting QS-1/4-6 male thread with external hexagon. Size: Standard, Nominal size: 5 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10

10 in stock

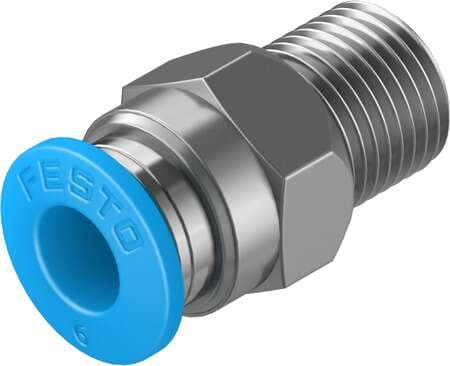

153002 on Powermatic Associates

153002

Festo

push-in fitting QS-1/8-6 male thread with external hexagon. Size: Standard, Nominal size: 5 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10

10 in stock

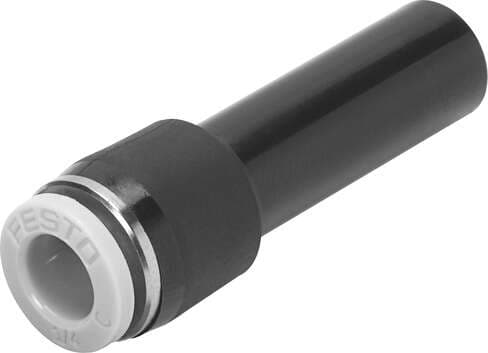

564817 on Powermatic Associates

564817

Festo

push-in connector QB-3/8H-1/4-U male thread with external hexagon. Size: Standard, Nominal size: 0,22 ", Assembly position: Any, Design structure: Push/pull principle, Operating pressure complete temperature range: -13,8 - 145 Psi

9 in stock
132047 on Powermatic Associates

132047

Festo

push-in fitting QS-G1/2-16-20 male thread with external hexagon. Size: Standard, Nominal size: 13 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 20

20 in stock
153330 on Powermatic Associates

153330

Festo

push-in L-fitting QSML-M3-3 360° orientable, male thread with external hexagon. Size: Mini, Nominal size: 0,8 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

5 in stock
572311 on Powermatic Associates

572311

Festo

push-in fitting QBM-10-32-UNF-1/8-I-U Size: Mini, Nominal size: 0,094 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

3 in stock

This item can ship within 24h!

Manufacturer warranty

183738 Festo

$4.06

Your price can be lower.
Log in or Create account to check your discount

Stock:

4

Select Qty:

$4.06

$4.06 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 183738 with other Pneumatic Fittings products

Operating pressure for en...

Corrosion resistance clas...

Maritime classification

Mounting position

Information on operating ...

Nominal tightening torque

Product weight

Releasing ring material

Nominal width

Pack size

Selected product

183738
4 in stock
183738
Festo

push-in fitting QSM-M7-1/8-I-U-M male thread with internal hexagon socket. Size: Mini, Nominal size:...

Operating pressure for entire temperature range-0.95 bar ... 9.997 bar

Corrosion resistance class (CRC)1 - Low corrosion stress

Maritime classificationSee certificate

Mounting positionAny

Information on operating and pilot mediaOperation with oil lubricati...

Nominal tightening torque3.35 Nm

Product weight6.209 g

Releasing ring materialPOM

Nominal width2.007 mm

Pack size1

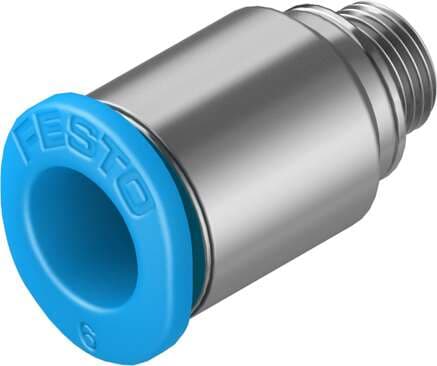

130591
28 in stock
130591
Festo

push-in fitting QSM-M5-1/4-I-U-M male thread with internal hexagon socket. Size: Mini, Nominal size:...

Operating pressure for entire temperature range-0.95 bar ... 9.997 bar

Corrosion resistance class (CRC)1 - Low corrosion stress

Maritime classificationSee certificate

Mounting positionAny

Information on operating and pilot mediaOperation with oil lubricati...

Nominal tightening torque-

Product weight-

Releasing ring material-

Nominal width2.489 mm

Pack size1

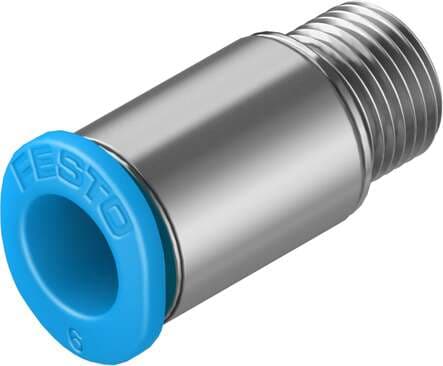

183740
