185780 Festo Compressed Air Preparation Units

185780 on Powermatic Associates
Festo

Part#:185780

Alt. Part#:LFR-1/8-D-MINI-KG-A

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

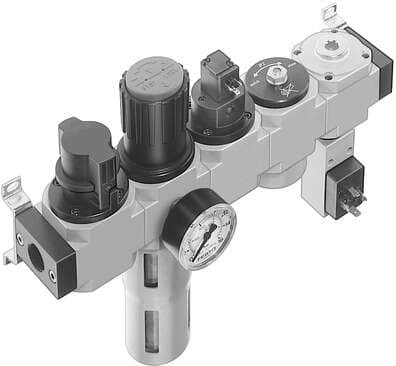

service unit LFR-1/8-D-MINI-KG-A consisting of manual on/off valve, filter regulator, on/off valve with solenoid coil 24 V DC, without socket,, pressure build-up valve and distributor module, without socket, with mounting brackets. With automatic condens

Product Details

  • Type code
    LFR
  • Grade of filtration
    40 µm
  • Pressure regulation range
    2.5 bar ... 12 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Ambient temperature
    -10 °C ... 60 °C
  • Maritime classification
    See certificate
  • Mounting position
    Vertical +/- 5°
  • Design
    Branching module Safety start-up valve
  • Pressure gauge
    with pressure gauge
  • Max. pressure hysteresis
    0.15 bar
  • Product weight
    1500 g
  • Size
    Mini
  • Actuator lock
    Rotary knob with detent
  • Max. condensate volume
    22 ml
  • Operating pressure
    3 bar ... 12 bar
  • Type of mounting
    Optionally: With accessories
  • Material of bowl
    PC
  • Series
    D
  • Bowl guard
    Metal bowl guard
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
  • Pneumatic connection 2
    G1/8
  • Housing material
    Die-cast zinc
  • Condensate drain
    Fully automatic
  • Symbol
    00991527
  • Standard nominal flow rate
    575 l/min
  • Temperature of medium
    -10 °C ... 60 °C
  • Pneumatic connection 1
    G1/8

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
