186205 Festo Pneumatic Fittings
Part#:186205
Alt. Part#:QSTF-G1/4-10
Manufacturer:Festo
Category:Pneumatic Fittings
Product Lifecycle:Active
Product description
push-in T-fitting QSTF-G1/4-10 360° orientable, male and female thread with external hexagon. Size: Standard, Nominal size: 7 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 1
Product Details
- Nominal width 7 mm
- Design Push-pull principle
- Nominal tightening torque 9 Nm
- Ambient temperature -10 °C ... 80 °C
- Pneumatic connection 2 Internal thread G1/4 for pneumatic tubing outside diameter 10 mm
- Material of tube retaining claw High-alloy stainless steel
- Size Standard
- Type code QSTF
- Mounting position Any
- Information on operating and pilot media Operation with oil lubrication possible
- Product weight 47 g
- Releasing ring color Blue
- Type of seal on screwed trunnion Sealing ring
- Temperature-dependent operating pressure -0.95 bar ... 14 bar
- Tolerance for nominal tightening torque ± 20%
- No. of outlets 2
- Note on materials RoHS-compliant
- Releasing ring material POM
- Operating pressure for entire temperature range -0.95 bar ... 6 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
- Pneumatic connection 1 External thread G1/4
- Housing material PBT
- Maritime classification See certificate
- Pack size 1
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- No. of supply lines 1
- Material of tubing seal NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
186205 Related Documents
Similar products from: Festo Pneumatic Fittings
Manufacturer warranty
186205 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 186205 with other Pneumatic Fittings products
Nominal width
Design
Nominal tightening torque
Ambient temperature
Pneumatic connection 2
Material of tube retainin...
Size
Type code
Mounting position
Information on operating ...
Selected product
186205
Festo
push-in T-fitting QSTF-G1/4-10 360° orientable, male and female thread with external hexagon. Size: ...
Nominal width7 mm
DesignPush-pull principle
Nominal tightening torque9 Nm
Ambient temperature-10 °C ... 80 °C
Pneumatic connection 2Internal thread G1/4 for pne...
Material of tube retaining clawHigh-alloy stainless steel
SizeStandard
Type codeQSTF
Mounting positionAny
Information on operating and pilot mediaOperation with oil lubricati...

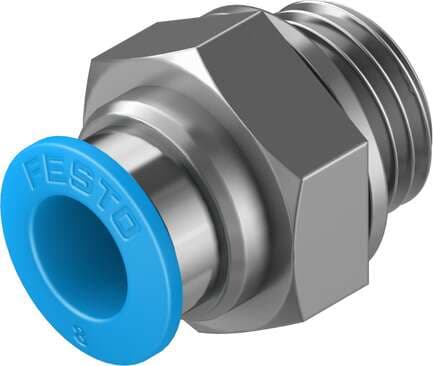

186099
