188225 Festo Pneumatic Actuators
Part#:188225
Alt. Part#:AEVC-40-25-I-P-A
Manufacturer:Festo
Category:Pneumatic Actuators
Product Lifecycle:Active
Product description

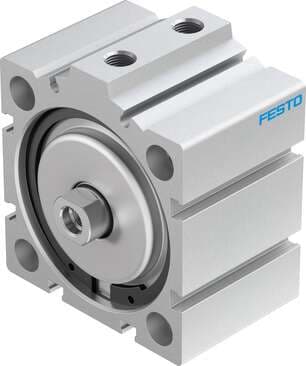

short-stroke cylinder AEVC-40-25-I-P-A For proximity sensing, piston-rod end with female thread. Stroke: 25 mm, Piston diameter: 40 mm, Spring return force, retracted: 28 N, Based on the standard: (* ISO 6431, * Hole pattern, * VDMA 24562), Cushioning: P:
Product Details
- Spring resetting force with piston rod in retracted position 28 N
- Mounting position Any
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Theoretical force at 6 bar, advancing 707 N
- Piston rod material High-alloy steel
- Mode of operation Single-acting Pushing
- Design Piston Piston rod
- Pneumatic connection G1/8
- Housing material Wrought aluminum alloy Anodized
- Stroke 25 mm
- Type code AEVC
- Position sensing For proximity sensor
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Moving mass 83 g
- Note on materials Free of copper and PTFE
- Piston diameter 40 mm
- Based on norm ISO 6431 VDMA 24562
- Symbol 00991729
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Product weight 367 g
- Cover material Wrought aluminum alloy Anodized
- Cushioning Elastic cushioning rings/pads at both ends
- Operating pressure 1 bar ... 10 bar
- Ambient temperature -20 °C ... 80 °C
- Type of mounting Optionally: With accessories
- Seals material TPE-U(PU)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
