188307 Festo Pneumatic Actuators

188307 on Powermatic Associates
Festo

Part#:188307

Alt. Part#:AEVC-80-25-A-P

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

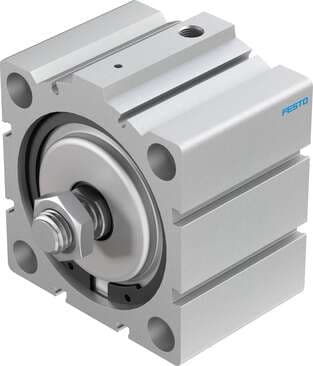

short-stroke cylinder AEVC-80-25-A-P No facility for sensing, piston-rod end with male thread. Stroke: 25 mm, Piston diameter: 80 mm, Spring return force, retracted: 85 N, Based on the standard: (* ISO 6431, * Hole pattern, * VDMA 24562), Cushioning: P: F

Product Details

  • Type code
    AEVC
  • Mode of operation
    Single-acting Pushing
  • Design
    Piston Piston rod
  • Ambient temperature
    -20 °C ... 80 °C
  • Product weight
    1354 g
  • Seals material
    NBR TPE-U(PU)
  • Symbol
    00991730
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Pneumatic connection
    G1/8
  • Piston rod material
    High-alloy steel
  • Spring resetting force with piston rod in retracted position
    85 N
  • Based on norm
    ISO 6431 VDMA 24562
  • Position sensing
    None
  • Theoretical force at 6 bar, advancing
    2901 N
  • Type of mounting
    Optionally: With accessories
  • Housing material
    Wrought aluminum alloy Anodized
  • Piston diameter
    80 mm
  • Mounting position
    Any
  • Operating pressure
    1 bar ... 10 bar
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Cover material
    Wrought aluminum alloy Anodized
  • Stroke
    25 mm
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Moving mass
    365 g
  • Note on materials
    Free of copper and PTFE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
