189379 Festo Vacuum Cups

189379 on Powermatic Associates
Festo

Part#:189379

Alt. Part#:ESS-20-BU

Manufacturer:Festo

Category:Vacuum Cups

Product Lifecycle:Active

Product description

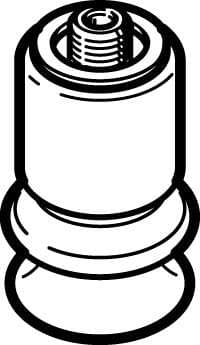

suction cup ESS-20-BU easily interchangeable, Suction cup height compensator: 6 mm, Min. workpiece radius: 40 mm, Nominal size: 3 mm, suction cup diameter: 20 mm, suction cup volume: 1,6 cm3

Product Details

  • Suction cup diameter
    20 mm
  • Symbol
    00991485
  • Nominal operating pressure
    -0.7 bar
  • Lateral force at nominal operating pressure
    9.5 N
  • Color
    Blue
  • Material of screwed trunnion
    Brass, nickel-plated Steel, galvanized and chrome-plated
  • Operating pressure
    0 bar ... 0.95 bar
  • Ambient temperature
    -20 °C ... 60 °C
  • Type of mounting
    Via vacuum connection
  • Suction cup material
    PUR
  • Min. workpiece radius
    40 mm
  • Connection position
    Top
  • Suction cup shape
    Round bellows, 1.5 convolutions
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Nominal width
    3 mm
  • Suction cup volume
    1.6 cm³
  • Classification of suction cup holder
    Size 4
  • Operating medium
    Atmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Holding force at nominal operating pressure
    12.9 N
  • Vacuum connection
    M6
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Suction cup height compensation
    6 mm
  • Type code
    ESS
  • Mounting position
    Any
  • For use in the food industry
    See supplementary material information
  • Product weight
    6.7 g
  • Shore hardness
    60 +/- 5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
