189459 Festo Actuator Accessories
Part#:189459
Alt. Part#:DFC-6-25-P-A-GF
Manufacturer:Festo
Category:Actuator Accessories
Product Lifecycle:Active
Product description

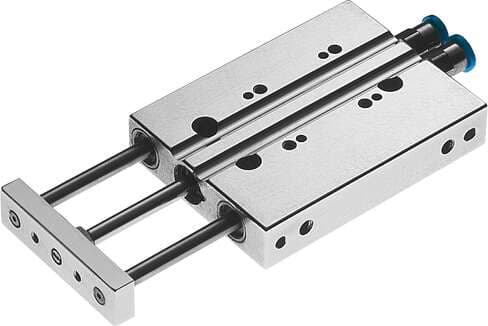

mini guided drive DFC-6-25-P-A-GF For position sensing with plain-bearing guide. Centre of gravity distance from working load to yoke plate: 10 mm, Stroke: 25 mm, Piston diameter: 6 mm, Operating mode of drive unit: Yoke, Cushioning: P: Flexible cushionin
Product Details
- Stroke 25 mm
- Drive unit operating mode Yoke
- Guide Sliding guide
- Max. speed 1 m/s
- Distance of centre of gravity of payload to yoke plate xs 10 mm
- Type code DFC
- Position sensing For proximity sensor
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature -5 °C ... 60 °C
- Theoretical force at 6 bar, advancing 17 N
- Housing material Wrought aluminum alloy
- Piston diameter 6 mm
- Design Guide
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Moving mass 8.8 g
- Pneumatic connection M3
- Cushioning Elastic cushioning rings/pads at both ends
- Operating pressure 1.5 bar ... 10 bar
- Mode of operation Double-acting
- Max. torque Mx 0.1 Nm
- Theoretical force at 6 bar, retracting 12.5 N
- Product weight 49 g
- Piston rod material High-alloy stainless steel
- Mounting position Any
- Symbol 00991737
- Max. payload as a function of the stroke at defined distance xs 4.8 N
- Additional moving mass per 10 mm stroke 2.8 g
- Seals material NBR
- Impact energy in the end positions 0.008 J
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Moving mass at 0 mm stroke 8.8 g
- Cover material Wrought aluminum alloy
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
