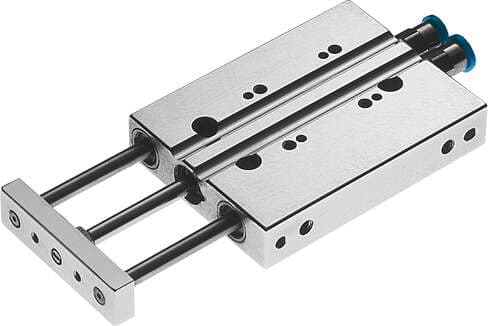

189474 Festo Actuator Accessories

Product Details

• Type code
  DFC
• Design
  Guide
• Corrosion resistance class (CRC)
  0 - No corrosion stress
• Impact energy in the end positions
  0.05 J
• Moving mass at 0 mm stroke
  27.2 g
• Pneumatic connection
  M5
• Seals material
  NBR
• Distance of centre of gravity of payload to yoke plate xs
  15 mm
• Piston diameter
  10 mm
• Guide
  Recirculating ball bearing guide
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Max. payload as a function of the stroke at defined distance xs
  9.8 N
• Theoretical force at 6 bar, advancing
  47 N
• Piston rod material
  High-alloy stainless steel
• Stroke
  10 mm
• Drive unit operating mode
  Yoke
• Position sensing
  For proximity sensor
• Max. speed
  1 m/s
• Theoretical force at 6 bar, retracting
  35 N
• Product weight
  100 g
Housing material
Wrought aluminum alloy
Mounting position
Any
Operating pressure
1 bar ... 10 bar
Ambient temperature
-5 °C ... 60 °C
Max. torque Mx
0.3 Nm
Cover material
Wrought aluminum alloy
Cushioning
Elastic cushioning rings/pads at both ends
Symbol
00991737
Mode of operation
Double-acting
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Moving mass
27.2 g
Additional moving mass per 10 mm stroke
7.2 g
