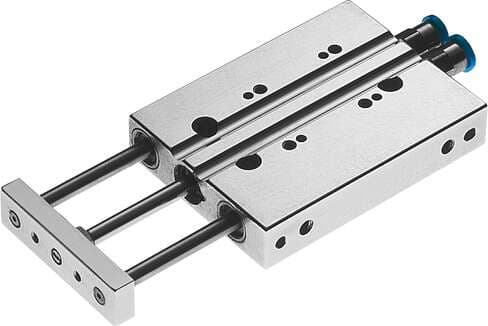

189476 Festo Actuator Accessories

Product Details

• Cushioning
  Elastic cushioning rings/pads at both ends
• Design
  Guide
• Mode of operation
  Double-acting
• Impact energy in the end positions
  0.05 J
• Theoretical force at 6 bar, advancing
  47 N
• Product weight
  117 g
• Housing material
  Wrought aluminum alloy
• Piston diameter
  10 mm
• Type code
  DFC
• Operating pressure
  1 bar ... 10 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Moving mass at 0 mm stroke
  27.2 g
• Pneumatic connection
  M5
• Drive unit operating mode
  Yoke
• Position sensing
  For proximity sensor
• Max. torque Mx
  0.3 Nm
• Moving mass
  27.2 g
• Piston rod material
  High-alloy stainless steel
• Stroke
  20 mm
• Guide
  Recirculating ball bearing guide
Max. speed
1 m/s
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Max. payload as a function of the stroke at defined distance xs
9.8 N
Theoretical force at 6 bar, retracting
35 N
Cover material
Wrought aluminum alloy
Distance of centre of gravity of payload to yoke plate xs
15 mm
Mounting position
Any
Symbol
00991737
Corrosion resistance class (CRC)
0 - No corrosion stress
Ambient temperature
-5 °C ... 60 °C
Additional moving mass per 10 mm stroke
7.2 g
Seals material
NBR
