190854 Festo Stop Valves (non-return)

190854 on Powermatic Associates
Festo

Part#:190854

Alt. Part#:HA-1/4-QS-5/16-U

Manufacturer:Festo

Category:Stop Valves (non-return)

Product Lifecycle:Active

Product description

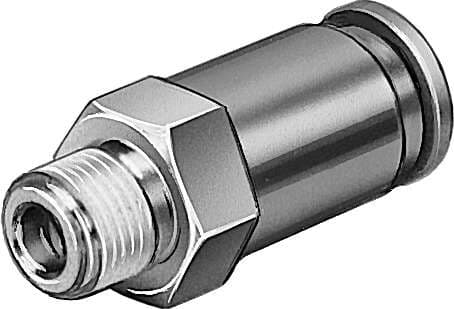

non-return valve HA-1/4-QS-5/16-U Flow rate from the male thread to the QS plug connector. Valve function: Non-return function, Pneumatic connection, port 1: 1/4 NPT, Pneumatic connection, port 2: QS-5/16, Mounting type: Threaded, Standard nominal flow

Product Details

  • Valve function
    Non-return function
  • Type of mounting
    Screw-in
  • Housing material
    Brass
  • Min. differential pressure, opening
    0.1 bar
  • Pneumatic connection 2
    QS-5/16
  • Symbol
    00991455
  • Pneumatic connection 1
    1/4 NPT
  • Operating pressure
    -1 bar ... 10 bar
  • Min. differential pressure, closing
    0.2 bar
  • Ambient temperature
    0 °C ... 60 °C
  • Product weight
    24 g
  • Type code
    HA
  • Standard nominal flow rate
    766 l/min
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Note on materials
    RoHS-compliant
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
