19237 Festo Pneumatic Actuators

Name: 19237
Brand: Festo

Part#:19237

Alt. Part#:DSNU-20-50-PPV-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

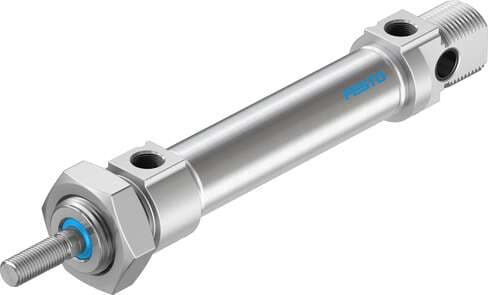

standards-based cylinder DSNU-20-50-PPV-A Based on DIN ISO 6432, for proximity sensing. Various mounting options, with or without additional mounting components. With adjustable end-position cushioning. Stroke: 50 mm, Piston diameter: 20 mm, Piston rod th

Product Details

Stroke
50 mm
Cushioning
Pneumatic cushioning, adjustable at both ends
Variants
Piston rod at one end
Ambient temperature
-20 °C ... 80 °C
Mounting position
Any
Position sensing
For proximity sensor
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Impact energy in the end positions
0.2 J
Additional weight per 10 mm stroke
7.2 g
Pneumatic connection
G1/8
Piston diameter
20 mm
Piston rod end
External thread
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Moving mass at 0 mm stroke
44 g
Theoretical force at 6 bar, advancing
188.5 N
Note on materials
RoHS-compliant
Piston rod material
High-alloy stainless steel
Maritime classification
See certificate
Type code
DSNU
Design
Piston Cylinder barrel

Mode of operation

Double-acting

Operating pressure

0.1 MPa ... 1 MPa

Cushioning length

15 mm

Additional moving mass per 10 mm stroke

4 g

Seals material

NBR TPE-U(PU)

Material of cylinder barrel

High-alloy stainless steel

Piston rod thread

Conforms to standard

CETOP RP 52 P ISO 6432

Symbol

00991235

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Theoretical force at 6 bar, retracting

158.3 N

Type of mounting

With accessories

Basic weight with 0 mm stroke

186.8 g

Cover material

Wrought aluminum alloy Plain anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
