192376 Festo Compressed Air Preparation Units

192376 on Powermatic Associates
Festo

Part#:192376

Alt. Part#:LFR-3/4-D-5M-DI-MAXI

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

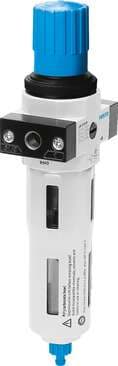

filter regulator LFR-3/4-D-5M-DI-MAXI With metal bowl guard and pressure gauge, degree of filtration 5 µm. With manual condensate drain. With directly-controlled pressure regulator. Size: Maxi, Series: D, Actuator lock: Rotary knob with lock, Assembly pos

Product Details

  • Size
    Maxi
  • Series
    D
  • Grade of filtration
    5 µm
  • Bowl guard
    Metal bowl guard
  • Standard nominal flow rate
    5800 l/min
  • Temperature of medium
    -10 °C ... 60 °C
  • Note on materials
    RoHS-compliant
  • Actuator lock
    Rotary knob with detent
  • Pressure gauge
    with pressure gauge
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
  • Product weight
    1670 g
  • Housing material
    Die-cast zinc
  • Type code
    LFR
  • Design
    Filter regulator with pressure gauge
  • Symbol
    00991589
  • Operating pressure
    1 bar ... 16 bar
  • Type of mounting
    Line installation
  • Pneumatic connection 1
    G3/4
  • Material of bowl
    PC
  • Maritime classification
    See certificate
  • Mounting position
    Vertical +/- 5°
  • Max. condensate volume
    43 ml
  • Pressure regulation range
    0.5 bar ... 12 bar
  • Storage temperature
    -10 °C ... 60 °C
  • Ambient temperature
    -10 °C ... 60 °C
  • Condensate drain
    Manually rotating
  • Max. pressure hysteresis
    0.4 bar
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
  • Pneumatic connection 2
    G3/4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
