19238 Festo Pneumatic Actuators

Name: 19238
Brand: Festo

Part#:19238

Alt. Part#:DSNU-20-80-PPV-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

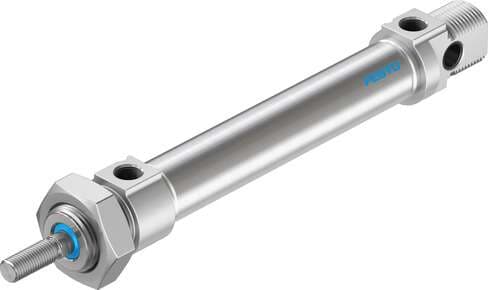

standards-based cylinder DSNU-20-80-PPV-A Based on DIN ISO 6432, for proximity sensing. Various mounting options, with or without additional mounting components. With adjustable end-position cushioning. Stroke: 80 mm, Piston diameter: 20 mm, Piston rod th

Product Details

Type code
DSNU
Position sensing
For proximity sensor
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Cushioning length
15 mm
Basic weight with 0 mm stroke
186.8 g
Additional moving mass per 10 mm stroke
4 g
Stroke
80 mm
Conforms to standard
CETOP RP 52 P ISO 6432
Symbol
00991235
Impact energy in the end positions
0.2 J
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Additional weight per 10 mm stroke
7.2 g
Cover material
Wrought aluminum alloy Plain anodized
Piston diameter
20 mm
Cushioning
Pneumatic cushioning, adjustable at both ends
Mode of operation
Double-acting
Ambient temperature
-20 °C ... 80 °C
Theoretical force at 6 bar, advancing
188.5 N
Note on materials
RoHS-compliant
Material of cylinder barrel
High-alloy stainless steel

Piston rod thread

Piston rod end

External thread

Design

Piston Cylinder barrel

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Theoretical force at 6 bar, retracting

158.3 N

Type of mounting

With accessories

Seals material

NBR TPE-U(PU)

Maritime classification

See certificate

Mounting position

Any

Operating pressure

0.1 MPa ... 1 MPa

Variants

Piston rod at one end

Moving mass at 0 mm stroke

44 g

Pneumatic connection

G1/8

Piston rod material

High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
