192454 Festo Compressed Air Preparation Units

192454 on Powermatic Associates
Festo

Part#:192454

Alt. Part#:LFR-1/2-D-DI-MAXI-KA-A

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

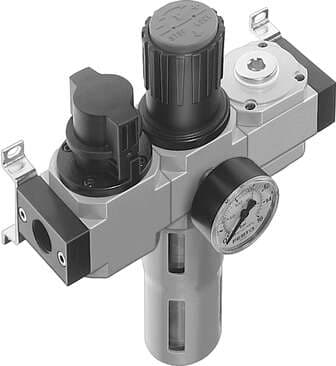

service unit LFR-1/2-D-DI-MAXI-KA-A consisting of filter regulator and distributor module, with mounting brackets. With automatic condensate drain. Size: Maxi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of f

Product Details

  • Temperature of medium
    -10 °C ... 60 °C
  • Type of mounting
    Optionally: With accessories
  • Housing material
    Die-cast zinc
  • Size
    Maxi
  • Actuator lock
    Rotary knob with detent
  • Mounting position
    Vertical +/- 5°
  • Bowl guard
    Metal bowl guard
  • Standard nominal flow rate
    5200 l/min
  • Ambient temperature
    -10 °C ... 60 °C
  • Maritime classification
    See certificate
  • Design
    Branching module Filter regulator with pressure gauge
  • Symbol
    00991776
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Product weight
    2600 g
  • Series
    D
  • Condensate drain
    Fully automatic
  • Operating pressure
    2 bar ... 12 bar
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
  • Pneumatic connection 2
    G1/2
  • Type code
    LFR
  • Grade of filtration
    40 µm
  • Max. condensate volume
    43 ml
  • Pressure gauge
    with pressure gauge
  • Pressure regulation range
    0.5 bar ... 12 bar
  • Pneumatic connection 1
    G1/2
  • Material of bowl
    PC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.



192454 Related Documents

Similar products from: Festo Compressed Air Preparation Units

Manufacturer warranty

192454 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery


Secure Payment Processing


Warranty


Responsive Customer Support

Got Questions? We've Got Answers!


Need more details?

Feel free to chat with us

Compare 192454 with other Compressed Air Preparation Units products

Temperature of medium

Type of mounting

Housing material

Size

Actuator lock

Mounting position

Bowl guard

Standard nominal flow rat...

Ambient temperature

Maritime classification

Selected product

192454
Backordered
192454
Festo

service unit LFR-1/2-D-DI-MAXI-KA-A consisting of filter regulator and distributor module, with moun...

Temperature of medium-10 °C ... 60 °C

Type of mountingOptionally: With accessories

Housing materialDie-cast zinc

SizeMaxi

Actuator lockRotary knob with detent

Mounting positionVertical +/- 5°

Bowl guardMetal bowl guard

Standard nominal flow rate5200 l/min

Ambient temperature-10 °C ... 60 °C

Maritime classificationSee certificate

159637
2 in stock
159637
Festo

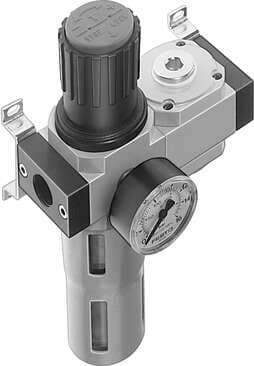

filter regulator LFR-1-D-MAXI-A With metal bowl guard and pressure gauge. With automatic condensate ...
