192622 Festo Compressed Air Preparation Units
Part#:192622
Alt. Part#:LFR-3/8-D-5M-O-MINI-A
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

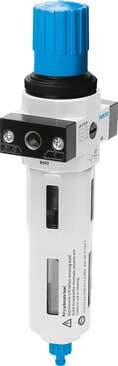

filter regulator LFR-3/8-D-5M-O-MINI-A With metal bowl guard without pressure gauge, degree of filtration 5 µm. With automatic condensate drain. Size: Mini, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of filt
Product Details
- Design Filter regulator without pressure gauge
- Pressure gauge G1/8 prepared
- Operating pressure 2 bar ... 12 bar
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
- Pneumatic connection 1 G3/8
- Maritime classification See certificate
- Mounting position Vertical +/- 5°
- Max. condensate volume 22 ml
- Pressure regulation range 0.5 bar ... 12 bar
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Product weight 460 g
- Note on materials Free of copper and PTFE RoHS-compliant
- Type code LFR
- Grade of filtration 5 µm
- Bowl guard Metal bowl guard
- Max. pressure hysteresis 0.2 bar
- Storage temperature -10 °C ... 60 °C
- Temperature of medium 5 °C ... 60 °C
- Housing material Die-cast zinc
- Size Mini
- Actuator lock Rotary knob with detent
- Condensate drain Fully automatic
- Operating medium Compressed air as per ISO 8573-1:2010 [7:9:-] Inert gas
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Ambient temperature 5 °C ... 60 °C
- Pneumatic connection 2 G3/8
- Series D
- Symbol 00991584
- Standard nominal flow rate 1350 l/min
- Type of mounting Optionally: With accessories
- Material of bowl PC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
