192665 Festo Compressed Air Preparation Units

192665 on Powermatic Associates
Festo

Part#:192665

Alt. Part#:FRC-1/2-D-5M-O-MIDI-A

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

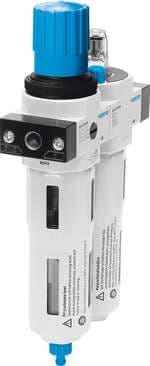

service unit FRC-1/2-D-5M-O-MIDI-A Filter/regulator/lubricator combination, 5 µm filter, with metal bowl guard. With automatic condensate drain. Without pressure gauge. Size: Midi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertic

Product Details

  • Design
    Filter regulator without pressure gauge Proportional standard oil mist lubricator
  • Standard nominal flow rate
    1800 l/min
  • Type of mounting
    Line installation With accessories
  • Material of bowl
    PC
  • Actuator lock
    Rotary knob with detent
  • Grade of filtration
    5 µm
  • Pressure regulation range
    0.5 bar ... 12 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:9:-] Inert gas
  • Ambient temperature
    -10 °C ... 60 °C
  • Note on materials
    RoHS-compliant
  • Size
    Midi
  • Series
    D
  • Condensate drain
    Fully automatic
  • Symbol
    00991546
  • Max. pressure hysteresis
    0.2 bar
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [6:8:-] Inert gas
  • Pneumatic connection 1
    G1/2
  • Type code
    FRC
  • Max. condensate volume
    43 ml
  • Pressure gauge
    G1/4 prepared
  • Operating pressure
    2 bar ... 12 bar
  • Temperature of medium
    -10 °C ... 60 °C
  • Pneumatic connection 2
    G1/2
  • Maritime classification
    See certificate
  • Mounting position
    Vertical +/- 5°
  • Bowl guard
    Metal bowl guard
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Product weight
    1440 g
  • Housing material
    Die-cast zinc

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

192665 Related Documents

192665 DataSheet.pdf
