193138 Festo Stop Valves (non-return)

193138 on Powermatic Associates
Festo

Part#:193138

Alt. Part#:GRLA-M5-QS-4-D

Manufacturer:Festo

Category:Stop Valves (non-return)

Product Lifecycle:Active

Product description

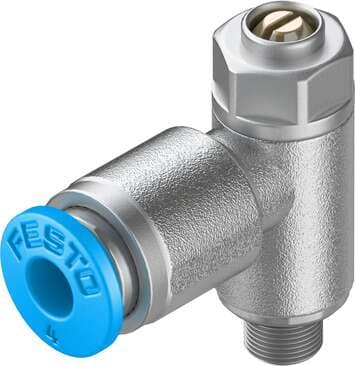

one-way flow control valve GRLA-M5-QS-4-D Valve function: One-way flow control function for exhaust air, Pneumatic connection, port 1: QS-4, Pneumatic connection, port 2: M5, Adjusting element: Slotted head screw, Mounting type: Threaded

Product Details

  • Type of mounting
    Screw-in
  • Mounting position
    Any
  • Valve function
    Exhaust air flow control non-return function
  • Adjusting element
    Slotted screw
  • Symbol
    00991452
  • Temperature of medium
    -10 °C ... 60 °C
  • Product weight
    13 g
  • Note on materials
    RoHS-compliant
  • Pneumatic connection 1
    QS-4
  • Ambient temperature
    -10 °C ... 60 °C
  • Standard flow rate in non-return direction at 6 -> 0 bar
    140 l/min ... 160 l/min
  • Nominal tightening torque
    0.8 Nm
  • Releasing ring material
    POM
  • Seals material
    NBR
  • Maritime classification
    See certificate
  • Standard nominal flow rate in non-return direction
    65 l/min ... 110 l/min
  • Standard flow rate in flow control direction 6 -> 0 bar
    165 l/min
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Tolerance for nominal tightening torque
    ± 10%
  • Material of adjusting screw
    Brass
  • Type code
    GRLA
  • Pneumatic connection 2
    M5
  • Standard nominal flow rate in flow control direction
    110 l/min
  • Operating pressure for entire temperature range
    0.2 bar ... 10 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Material of screwed trunnion
    Brass
  • Swivel joint material
    Die-cast zinc Chromated

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
