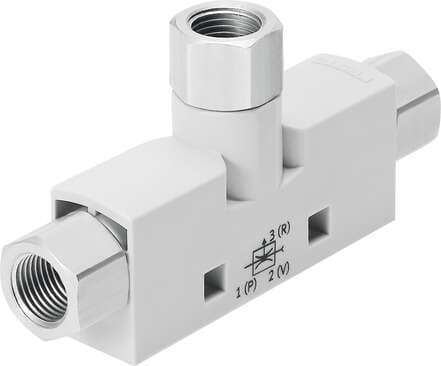

193544 Festo Vacuum Generators

Product Details

• Type code
  VN
• Operating pressure for max. suction rate
  6.3 bar
• Operating pressure for max. vacuum
  6 bar
• Information on operating and pilot media
  Operation with oil lubrication not possible
• Type of mounting
  With through-hole With accessories
• Symbol
  00991491
• Max. suction rate with respect to atmosphere
  6.1 l/min
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Max. tightening torque
  0.5 Nm
• Pneumatic connection 3
  G1/8
• Housing material
  POM-reinforced
• Nominal width of Laval nozzle
  0.45 mm
• Mounting position
  Any
• Ejector characteristics
  High vacuum Inline
• Operating pressure
  1 bar ... 8 bar
• Air supply time at nominal operating pressure
  4.7 s
• Temperature of medium
  0 °C ... 60 °C
• Pneumatic connection 1
  G1/8
• Vacuum connection
  G1/8
• Female nozzle material
  POM
Corrosion resistance class (CRC)
1 - Low corrosion stress
Product weight
22 g
Material of connecting thread
Wrought aluminum alloy, anodized
Seals material
NBR
Width dimension
14 mm
Design
T-shape
Nominal operating pressure
6 bar
Max. vacuum
86 %
Ambient temperature
0 °C ... 60 °C
Note on materials
Free of copper and PTFE RoHS-compliant
Material of jet nozzle
Wrought aluminum alloy
