193563 Festo Vacuum Generators

193563 on Powermatic Associates
Festo

Part#:193563

Alt. Part#:VN-10-L-T3-PQ2-VQ2-RQ2

Manufacturer:Festo

Category:Vacuum Generators

Product Lifecycle:Active

Product description

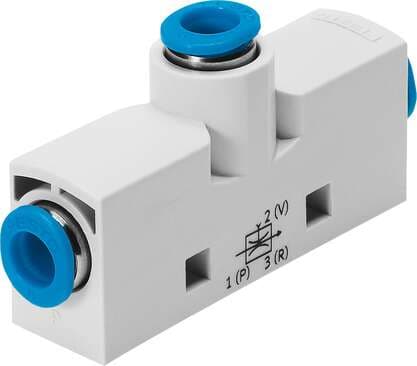

vacuum generator VN-10-L-T3-PQ2-VQ2-RQ2 Standard, high suction rate, width 14 mm, T shape with push-in connector Nominal size, Laval nozzle: 0,95 mm, Grid dimension: 14 mm, Assembly position: Any, Ejector characteristic: (* High suction flow rate, * Stand

Product Details

  • Nominal width of Laval nozzle
    0.95 mm
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Pneumatic connection 1
    QS-6
  • Nominal operating pressure
    6 bar
  • Temperature of medium
    0 °C ... 60 °C
  • Product weight
    22 g
  • Female nozzle material
    POM
  • Width dimension
    14 mm
  • Symbol
    00991490
  • Max. suction rate with respect to atmosphere
    62.7 l/min
  • Information on operating and pilot media
    Operation with oil lubrication not possible
  • Type of mounting
    With through-hole With accessories
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Housing material
    POM-reinforced
  • Type code
    VN
  • Ejector characteristics
    High suction rate Standard
  • Operating pressure for max. suction rate
    4 bar
  • Air supply time at nominal operating pressure
    0.46 s
  • Ambient temperature
    0 °C ... 60 °C
  • Pneumatic connection 3
    QS-6
  • Seals material
    NBR
  • Mounting position
    Any
  • Design
    T-shape
  • Operating pressure
    1 bar ... 8 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Max. tightening torque
    0.5 Nm
  • Vacuum connection
    QS-6
  • Material of pneumatic fitting
    Brass Nickel-plated
  • Material of jet nozzle
    Wrought aluminum alloy

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
