193587 Festo Vacuum Generators

193587 on Powermatic Associates
Festo

Part#:193587

Alt. Part#:VN-05-M-I2-PQ1-VT1

Manufacturer:Festo

Category:Vacuum Generators

Product Lifecycle:Active

Product description

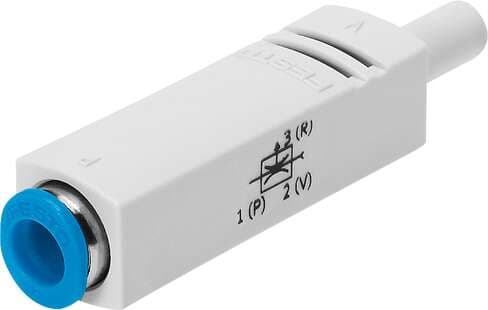

vacuum generator VN-05-M-I2-PQ1-VT1 In-line, high vacuum, width 14 mm, with plug connector and push-in sleeve. Nominal size, Laval nozzle: 0,45 mm, Grid dimension: 10 mm, Assembly position: Any, Ejector characteristic: (* High vacuum, * Inline), Design st

Product Details

  • Width dimension
    10 mm
  • Ejector characteristics
    High vacuum Inline
  • Nominal operating pressure
    6 bar
  • Information on operating and pilot media
    Operation with oil lubrication not possible
  • Pneumatic connection 3
    Not ducted
  • Material of jet nozzle
    Wrought aluminum alloy
  • Type code
    VN
  • Design
    Straight design
  • Operating pressure for max. vacuum
    6 bar
  • Product weight
    8 g
  • Female nozzle material
    POM
  • Material of pneumatic fitting
    Brass Nickel-plated
  • Operating pressure
    1 bar ... 8 bar
  • Air supply time at nominal operating pressure
    4.7 s
  • Ambient temperature
    0 °C ... 60 °C
  • Seals material
    NBR
  • Nominal width of Laval nozzle
    0.45 mm
  • Symbol
    00991491
  • Max. suction rate with respect to atmosphere
    6.1 l/min
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Type of mounting
    Line installation
  • Vacuum connection
    Push-in sleeve QS-4
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Mounting position
    Any
  • Operating pressure for max. suction rate
    6.3 bar
  • Max. vacuum
    86 %
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Temperature of medium
    0 °C ... 60 °C
  • Pneumatic connection 1
    QS-4
  • Housing material
    POM-reinforced

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
