193790 Festo Pneumatic Components
Part#:193790
Alt. Part#:EB-325-215
Manufacturer:Festo
Category:Pneumatic Components
Product Lifecycle:Active
Product description

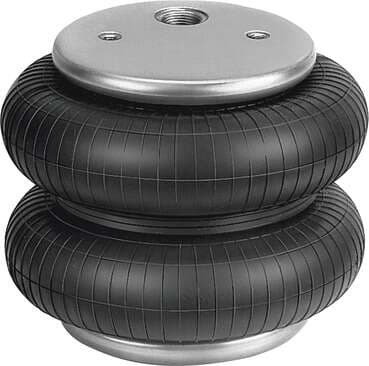

bellows cylinder EB-325-215 Maintenance-free, no stick/slip effect. Size: 325, Required installation diameter: 340 mm, Stroke: 215 mm, Max height when extended: 305 mm, Max. tipping angle: 20 deg
Product Details
- Max. height, advanced 305 mm
- Type code EB
- Operating medium Compressed air as per ISO 8573-1:2010 [-:-:4]
- Type of mounting With internal thread
- Housing material Steel Galvanized
- Symbol 00991205
- Ambient temperature -40 °C ... 70 °C
- Product weight 4800 g
- Required installation Ø 340 mm
- Max. angle of inclination 20 deg
- Min. installation height 75 mm
- Operating pressure 0 bar ... 8 bar
- Information on operating and pilot media Operation with oil lubrication not possible
- Bellows material NR/BR
- Size 325
- Max. offset 20 mm
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Pneumatic connection G1/4
- Stroke 215 mm
- Mode of operation Single-acting
- Resetting force 300 N
- Note on materials Free of copper and PTFE RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
