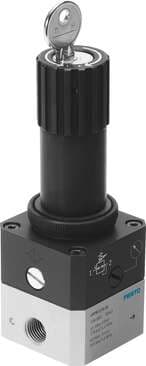

194612 Festo Compressed Air Preparation Units
Part#:194612
Alt. Part#:LRS-1/4-D-O-MINI
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description
pressure regulator LRS-1/4-D-O-MINI With lockable regulator head, working pressure up to 12 bar. Size: Mini, Series: D, Actuator lock: Rotary knob with integrated lock, Assembly position: Any, Design structure: directly-controlled diaphragm regulator
Product Details
- Series D
- Operating pressure 1 bar ... 16 bar
- Temperature of medium -10 °C ... 60 °C
- Note on materials RoHS-compliant
- Design Directly controlled diaphragm regulator
- Pressure regulation range 0.5 bar ... 12 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 2 G¼
- Seals material NBR
- Size Mini
- Mounting position Any
- Symbol 00991540
- Standard nominal flow rate 1500 l/min
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Pneumatic connection 1 G1/4
- Material of sub-base Die-cast zinc
- Actuator lock Rotary knob with integrated lock
- Pressure gauge G1/8 prepared
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Product weight 450 g
- Housing material Die-cast zinc
- Type code LRS
- Controller function Outlet pressure constant With secondary exhausting
- Max. pressure hysteresis 0.2 bar
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Type of mounting Front panel mounting With accessories
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
194612 Related Documents
Similar products from: Festo Compressed Air Preparation Units
Manufacturer warranty
194612 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 194612 with other Compressed Air Preparation Units products
Series
Operating pressure
Temperature of medium
Note on materials
Design
Pressure regulation range
Information on operating ...
Ambient temperature
Pneumatic connection 2
Seals material
Selected product
194612
Festo
pressure regulator LRS-1/4-D-O-MINI With lockable regulator head, working pressure up to 12 bar. Siz...
SeriesD
Operating pressure1 bar ... 16 bar
Temperature of medium-10 °C ... 60 °C
Note on materialsRoHS-compliant
DesignDirectly controlled diaphrag...
Pressure regulation range0.5 bar ... 12 bar
Information on operating and pilot mediaOperation with oil lubricati...
Ambient temperature-10 °C ... 60 °C
Pneumatic connection 2G¼
Seals materialNBR
528975
Festo
pressure regulator combination LRB-1/2-D-O-K3-MIDI With connecting kit, sub-base and mounting bracke...
SeriesD
Operating pressure1 bar ... 16 bar
Temperature of medium-
Note on materials-
DesignDirectly controlled diaphrag...
Pressure regulation range0.5 bar ... 12 bar
Information on operating and pilot media-
Ambient temperature-
Pneumatic connection 2-
Seals material-
186453
Festo
pressure regulator LR-1/4-D-7-MIDI With pressure gauge, working pressure up to 7 bar. Size: Midi, Se...
SeriesD
Operating pressure0 bar ... 16 bar
Temperature of medium-
Note on materials-
DesignDirectly controlled diaphrag...
Pressure regulation range0.5 bar ... 7 bar
Information on operating and pilot media-
Ambient temperature-
Pneumatic connection 2-
Seals material-
About the manufacturer
Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
About the Product Category
Also referred to as an FRL unit (Filter, Regulator, Lubricator), an air preparation unit is utilized to treat compressed air. It accomplishes this by eliminating impurities, managing pressure, and adding specific quantities of oil for lubrication.
