194626 Festo Compressed Air Preparation Units
Part#:194626
Alt. Part#:LRS-1/4-D-MIDI
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

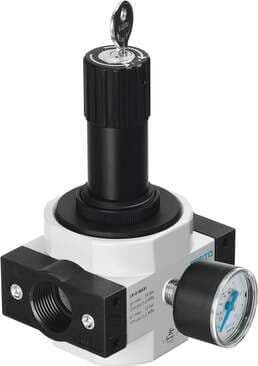

pressure regulator LRS-1/4-D-MIDI With lockable regulator head, working pressure up to 12 bar. Size: Midi, Series: D, Actuator lock: Rotary knob with integrated lock, Assembly position: Any, Design structure: directly-controlled diaphragm regulator
Product Details
- Series D
- Mounting position Any
- Pressure gauge with pressure gauge
- Temperature of medium -10 °C ... 60 °C
- Pneumatic connection 1 G1/4
- Type code LRS
- Controller function Outlet pressure constant With secondary exhausting
- Pressure regulation range 0.5 bar ... 12 bar
- Standard nominal flow rate 2100 l/min
- Pneumatic connection 2 G¼
- Actuator lock Rotary knob with integrated lock
- Symbol 00991538
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Type of mounting Front panel mounting With accessories
- Seals material NBR
- Size Midi
- Design Directly controlled diaphragm regulator
- Max. pressure hysteresis 0.2 bar
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Ambient temperature -10 °C ... 60 °C
- Housing material Die-cast zinc
- Operating pressure 0 bar ... 16 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Product weight 1250 g
- Note on materials RoHS-compliant
- Material of sub-base Die-cast zinc
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
