194662 Festo Compressed Air Preparation Units
Part#:194662
Alt. Part#:LRS-3/4-D-7-MAXI
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

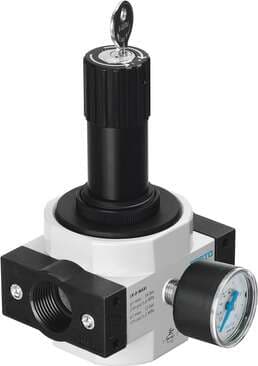

pressure regulator LRS-3/4-D-7-MAXI With lockable regulator head, working pressure up to 7 bar. Size: Maxi, Series: D, Actuator lock: Rotary knob with integrated lock, Assembly position: Any, Design structure: Piloted piston regulator
Product Details
- Size Maxi
- Mounting position Any
- Symbol 00991558
- Pressure gauge with pressure gauge
- Max. pressure hysteresis 0.4 bar
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Type of mounting Front panel mounting With accessories
- Material of sub-base Die-cast zinc
- Series D
- Operating pressure 0 bar ... 16 bar
- Standard nominal flow rate 12000 l/min
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 2 G3/4
- Actuator lock Rotary knob with integrated lock
- Pressure regulation range 0.5 bar ... 7 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Note on materials RoHS-compliant
- Type code LRS
- Design Pilot-controlled piston control valve
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Product weight 1288 g
- Housing material Die-cast zinc
- Controller function Outlet pressure constant With secondary exhausting
- Temperature of medium -10 °C ... 60 °C
- Pneumatic connection 1 G3/4
- Seals material NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
