194687 Festo Compressed Air Preparation Units

194687 on Powermatic Associates
Festo

Part#:194687

Alt. Part#:LRBS-D-7-O-MIDI

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

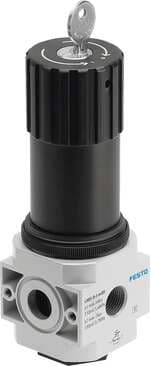

pressure regulator LRBS-D-7-O-MIDI Without threaded connection plates, for block mounting, without pressure gauge, lockable. Size: Midi, Series: D, Actuator lock: Rotary knob with integrated lock, Assembly position: Any, Design structure: (* directly-cont

Product Details

  • Series
    D
  • Symbol
    00991540
  • Standard nominal flow rate
    3200 l/min
  • Pneumatic connection 1
    Sub-base
  • Seals material
    NBR
  • Type code
    LRBS
  • Design
    Directly controlled diaphragm regulator with continuous compressed air supply
  • Pressure gauge
    G1/4 prepared
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Ambient temperature
    -10 °C ... 60 °C
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Size
    Midi
  • Mounting position
    Any
  • Pressure regulation range
    0.5 bar ... 7 bar
  • Temperature of medium
    -10 °C ... 60 °C
  • Pneumatic connection 2
    G3/8
  • Material of operator panel
    Aluminum
  • Operating pressure
    1 bar ... 16 bar
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Product weight
    940 g
  • Material of sub-base
    Die-cast zinc
  • Actuator lock
    Rotary knob with integrated lock
  • Controller function
    Outlet pressure constant With secondary exhausting
  • Max. pressure hysteresis
    0.2 bar
  • Type of mounting
    Line installation With accessories
  • Housing material
    Die-cast zinc

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
