194727 Festo Compressed Air Preparation Units

194727 on Powermatic Associates
Festo

Part#:194727

Alt. Part#:LFRS-3/8-D-7-O-MINI-A

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

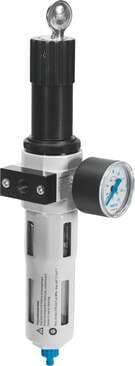

filter regulator LFRS-3/8-D-7-O-MINI-A With lockable regulator head, without pressure gauge, for a nominal pressure of 7 bar, for unlubricated compressed air Size: Mini, Series: D, Actuator lock: Rotary knob with integrated lock, Assembly position: Vertic

Product Details

  • Pressure gauge
    G1/8 prepared
  • Pressure regulation range
    0.5 bar ... 7 bar
  • Storage temperature
    -10 °C ... 60 °C
  • Pneumatic connection 2
    G3/8
  • Housing material
    Die-cast zinc
  • Actuator lock
    Rotary knob with integrated lock
  • Bowl guard
    Metal bowl guard
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Pneumatic connection 1
    G3/8
  • Type code
    LFRS
  • Grade of filtration
    40 µm
  • Symbol
    00991584
  • Standard nominal flow rate
    1700 l/min
  • Ambient temperature
    5 °C ... 60 °C
  • Temperature of medium
    5 °C ... 60 °C
  • Material of bowl
    PC
  • Size
    Mini
  • Mounting position
    Vertical +/- 5°
  • Design
    Filter regulator without pressure gauge
  • Operating pressure
    2 bar ... 12 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Type of mounting
    Optionally: With accessories
  • Series
    D
  • Condensate drain
    Fully automatic
  • Max. condensate volume
    22 ml
  • Max. pressure hysteresis
    0.2 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:9:-] Inert gas
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
  • Product weight
    560 g
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
