195079 Festo Compressed Air Preparation Units

Name: 195079
Brand: Festo

Part#:195079

Alt. Part#:LFRS-1/2-D-MAXI-KA-A

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

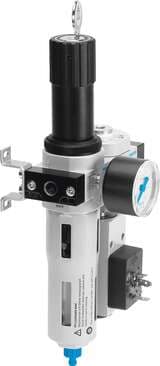

service unit LFRS-1/2-D-MAXI-KA-A With lockable regulator head and pressure gauge, for nominal pressure 12 bar, for unlubricated compressed air. Size: Maxi, Series: D, Actuator lock: Rotary knob with integrated lock, Assembly position: Vertical +/- 5°, Gr

Product Details

Series
D
Design
Branching module Filter regulator with pressure gauge
Max. pressure hysteresis
0.2 bar
Temperature of medium
-10 °C ... 60 °C
Type of mounting
Optionally: With accessories
Material of bowl
PC
Size
Maxi
Mounting position
Vertical +/- 5°
Symbol
00991776
Pressure regulation range
0.5 bar ... 12 bar
Ambient temperature
-10 °C ... 60 °C
Pneumatic connection 1
G1/2
Grade of filtration
40 µm
Pressure gauge
with pressure gauge
Standard nominal flow rate
9200 l/min
Pneumatic connection 2
G1/2
Type code
LFRS
Max. condensate volume
80 ml
Operating medium
Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas
Corrosion resistance class (CRC)
2 - Moderate corrosion stress

Housing material

Die-cast zinc

Actuator lock

Rotary knob with integrated lock

Condensate drain

Fully automatic

Bowl guard

Metal bowl guard

Operating pressure

2 bar ... 12 bar

Air quality class at the output

Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas

Product weight

2500 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
