196135 Festo Directional Control Valves
Part#:196135
Alt. Part#:MHE2-MS1H-3/2G-QS-4
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

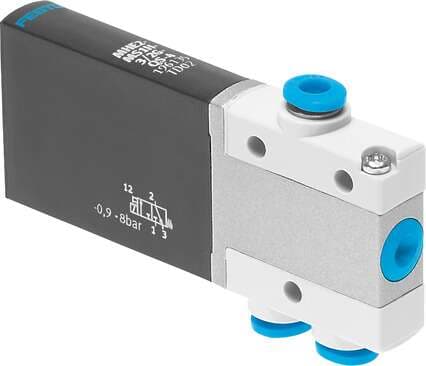

solenoid valve MHE2-MS1H-3/2G-QS-4 individual valve, fast switching. Valve function: 3/2 closed, monostable, Type of actuation: electrical, Width: 10 mm, Standard nominal flow rate: 100 l/min, Operating pressure: -0,9 - 8 bar
Product Details
- Valve function 3/2, closed, monostable
- Standard nominal flow rate 100 l/min
- Design Pressure-relieved poppet valve
- Width dimension 14 mm
- Reverse polarity protection Bipolar
- Operating pressure, reversible -0.9 bar ... 1 bar
- Tolerance for ON switching time +10%/-30%
- Coil characteristics 24 V DC: low-current phase 1.25 W, high-current phase 5.0 W
- Lap Underlap
- Pneumatic working port QS-4
- Degree of protection IP65
- Type code MH2
- Mounting position Any
- Max. switching frequency 330 Hz
- Permissible voltage fluctuations +/- 10 %
- Ambient temperature -5 °C ... 60 °C
- Pneumatic connection 2 QS-4
- Width 10 mm
- Operating pressure -0.9 bar ... 8 bar
- Sealing principle Soft
- Additional functions Spark suppression Protective circuit
- Switching time variation at 1 Hz and above 0.2 ms
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Pneumatic connection 1 QS-4
- Seals material HNBR NBR
- KC characters KC EMC
- Reset method Mechanical spring
- Exhaust air function With flow control option
- Manual override Non-detenting
- Flow direction Reversible with restrictions
- Switching time off 2 ms
- Duty cycle 100%
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Restricted ambient and media temperature Depending on the switching frequency (see diagram)
- Electrical connection 2-pin Plug
- Note on materials Free of copper and PTFE RoHS-compliant
- Actuation type Electrical
- Operating voltage 24V DC
- Certification RCM compliance mark c UL us - Recognized (OL)
- Nominal width 2 mm
- Type of control Direct
- Symbol 00991308
- On switching time 1.7 ms
- Tolerance for switching time off +10 %/-30 %
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Temperature of medium -5 °C ... 60 °C
- Product weight 60 g
- Housing material Die-cast zinc Coated
- CE marking (see declaration of conformity) As per EU EMC directive
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Type of mounting With through-hole
- Pneumatic connection 3 QS-4
- Material of screws Steel Galvanized
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
