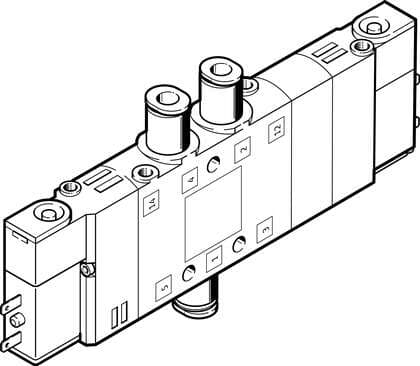

196900 Festo Directional Control Valves

Product Details

• Type code
  CPE14
• Switching time off
  42 ms
• Certification
  c UL us - Recognized (OL)
• Standard nominal flow rate
  570 l/min
• Reset method
  Mechanical spring
• Pilot air supply port
  Internal
• Duty cycle
  100% in combination with holding current reduction
• Max. negative test pulse on 1 signal
  900 µs
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Pilot exhaust air port 82
  M3
• Pneumatic connection 3
  G1/8
• Lap
  Overlap
• Operating pressure
  3 bar ... 8 bar
• Nominal width
  6 mm
• Mounting position
  Any
• Manual override
  Detenting via accessory Non-detenting
• On switching time
  20 ms
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Temperature of medium
  -5 °C ... 50 °C
• Electrical connection
  2-pin
Pneumatic connection 2
QS-8
Pneumatic connection 4
QS-8
Housing material
Die-cast aluminum
Valve function
5/3, exhausted
Width
14 mm
Pneumatic working port
QS-8
Design
Piston gate valve
Exhaust air function
With flow control option
Type of control
Pilot-controlled
Symbol
00991036
Coil characteristics
24 V DC: 1.28 W
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Type of mounting
With through-hole
Pilot air port 12
M3
Pilot air port 14
M3
Maritime classification
See certificate
Actuation type
Electrical
Operating voltage
24V DC
Degree of protection
IP65 as per IEC 60529
Sealing principle
Soft
Flow direction
Non-reversible
Valve position ID
Label holder
Max. positive test pulse with 0 signal
1200 µs
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 1
QS-8
Note on materials
RoHS-compliant
Seals material
NBR
Permissible voltage fluctuations
-15 % / +10 %
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Pilot exhaust air port 84
M3
Pneumatic connection 5
G1/8
