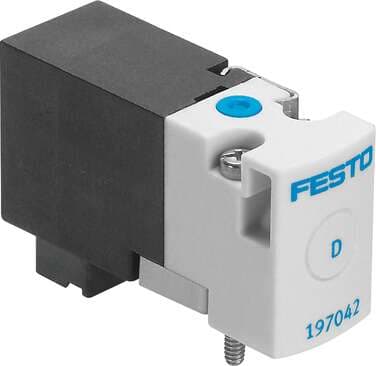

197006 Festo Directional Control Valves

Product Details

• Lap
  Underlap
• Operating voltage
  5V DC
• Certification
  c UL us - Recognized (OL)
• Type of control
  Direct
• Max. switching frequency
  20 Hz
• Coil characteristics
  5 V DC: 1.0 W
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Electrical connection
  Plug
• Pneumatic connection 2
  Sub-base
• Certificate issuing authority
  UL MH19482
• Pneumatic working port
  Sub-base
• Width dimension
  10 mm
• Sealing principle
  Soft
• Symbol
  00991308
• Electrical power consumption
  1 W
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Storage temperature
  -20 °C ... 60 °C
• Seals material
  FPM NBR
• Standard nominal flow rate
  10 l/min
• Design
  Poppet valve with return spring
Nominal width
0.65 mm
Mounting position
Any
Valve position ID
Label
Duty cycle
100%
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Product weight
10 g
Pneumatic connection 1
Sub-base
Actuation type
Electrical
Operating pressure
0 bar ... 8 bar
Degree of protection
IP40
Exhaust air function
With flow control option
Flow direction
Non-reversible
Switching time off
4 ms
Permissible voltage fluctuations
+/- 10 %
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Ambient temperature
-5 °C ... 40 °C
Type of mounting
On sub-base With through-hole
Note on materials
Free of copper and PTFE RoHS-compliant
Valve function
3/2, closed, monostable
Width
10 mm
Reset method
Mechanical spring
Type code
MHA1
Manual override
Non-detenting
Note on forced dynamization
Switching frequency at least once a week
On switching time
4 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium
-5 °C ... 40 °C
Pneumatic connection 3
Sub-base
Housing material
PA-reinforced PPS-reinforced
