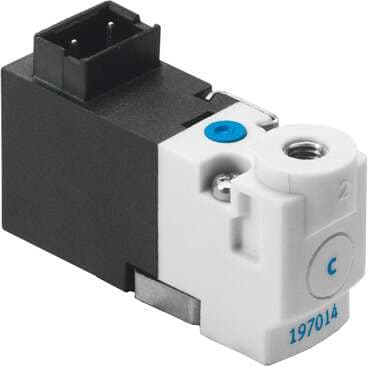

197013 Festo Directional Control Valves

Product Details

• Actuation type
  Electrical
• Operating pressure
  0 bar ... 8 bar
• Design
  Poppet valve with return spring
• Certification
  c UL us - Recognized (OL)
• Manual override
  Non-detenting
• Note on forced dynamization
  Switching frequency at least once a week
• Switching time off
  4 ms
• Permissible voltage fluctuations
  +/- 10 %
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Pneumatic connection 2
  M3
• Pneumatic connection 1
  Sub-base
• Symbol
  00991308
• On switching time
  4 ms
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Product weight
  10 g
• Seals material
  FPM NBR
• Valve function
  3/2, closed, monostable
• Width
  10 mm
• Reset method
  Mechanical spring
• Nominal width
  0.65 mm
Mounting position
Any
Valve position ID
Label
Max. switching frequency
20 Hz
Coil characteristics
12 V DC: 1.0 W
Temperature of medium
-5 °C ... 40 °C
Pneumatic connection 3
Sub-base
Certificate issuing authority
UL MH19482
Standard nominal flow rate
10 l/min
Degree of protection
IP40
Width dimension
10 mm
Sealing principle
Soft
Flow direction
Non-reversible
Duty cycle
100%
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Storage temperature
-20 °C ... 60 °C
Ambient temperature
-5 °C ... 40 °C
Type of mounting
On sub-base With through-hole
Housing material
PA-reinforced PPS-reinforced
Lap
Underlap
Pneumatic working port
M3
Operating voltage
12V DC
Exhaust air function
With flow control option
Type code
MHP1
Type of control
Direct
Electrical power consumption
1 W
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Electrical connection
Plug
Note on materials
Free of copper and PTFE RoHS-compliant
