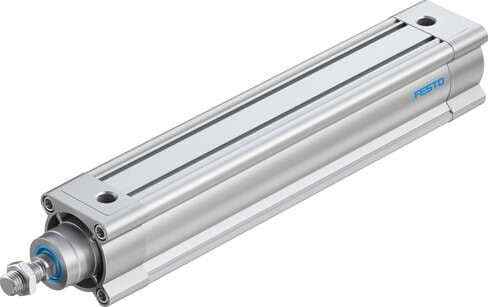

2126689 Festo Pneumatic Actuators
Part#:2126689
Alt. Part#:DSBC-63-300-PPSA-N3
Manufacturer:Festo
Category:Pneumatic Actuators
Product Lifecycle:Active
Product description
standards-based cylinder DSBC-63-300-PPSA-N3 with self-adjusting pneumatic end position cushioning Stroke: 300 mm, Piston diameter: 63 mm, Piston rod thread: M16x1,5, Cushioning: PPS: Self-adjusting pneumatic end-position cushioning, Assembly position: An
Product Details
- Piston rod wiper seal material TPE-U(PU)
- Material of bearing POM
- Flange screws material Steel, galvanized
- Cushioning Self-adjusting pneumatic end-position cushioning
- Mounting position Any
- Operating pressure 0.04 MPa ... 1.2 MPa
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Buffer seal material TPE-U(PU)
- Material of piston Wrought aluminum alloy
- Piston diameter 63 mm
- Piston rod end External thread
- Stroke 300 mm
- Type code DSBC
- Design Piston Profile barrel
- Impact energy in the end positions 1.3 J
- Moving mass at 0 mm stroke 430 g
- Cover material Die-cast aluminum, coated
- Cushion piston material POM
- Nut material Steel, galvanized
- Piston rod thread M16x1.5
- Symbol 00992970
- Mode of operation Double-acting
- Ambient temperature -20 °C ... 80 °C
- Additional moving mass per 10 mm stroke 25 g
- Material of cylinder barrel Wrought aluminum alloy, smooth-anodized
- Piston seal material TPE-U(PU)
- Conforms to standard ISO 15552
- Variants Piston rod at one end
- Position sensing For proximity sensor
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Theoretical force at 6 bar, advancing 1870 N
- Note on materials RoHS-compliant
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Cushioning length 22 mm
- Theoretical force at 6 bar, retracting 1682 N
- Pneumatic connection G3/8
- Piston rod material High-alloy steel
- Basic weight with 0 mm stroke 1740 g
- Additional weight per 10 mm stroke 62 g
- Type of mounting Optionally: With accessories
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
