2784164 Festo Electric Actuators
Part#:2784164
Alt. Part#:EAGF-V2-KF-50-320
Manufacturer:Festo
Category:Electric Actuators
Product Lifecycle:Active
Product description

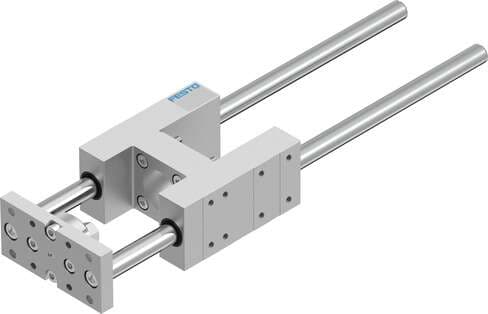

guide unit EAGF-V2-KF-50-320 For electric cylinder ESBF. Size: 50, Stroke: 320 mm, Reversing backlash: 0 µm, Assembly position: Any, Guide: Recirculating ball bearing guide
Product Details
- Stroke 320 mm
- Guide Recirculating ball bearing guide
- Max. force Fy static 1600 N
- Size 50
- Mounting position Any
- Corrosion resistance class (CRC) 0 - No corrosion stress
- Max. force Fz static 1600 N
- Reversing backlash 0 µm
- Max. force Fy 1260 N
- Type code EAGF
- Ambient temperature -20 °C ... 80 °C
- Max. torque Mx 65 Nm
- Max. torque Mz 70 Nm
- Design Guide
- Max. force Fz 1260 N
- Max. static moment My 89 Nm
- Product weight 5627 g
- Max. static moment Mx 83 Nm
- Moving mass 3583 g
- Center of gravity of moving mass with 0 mm stroke 46 mm
- Material of guide component Tempered steel
- Max. torque My 70 Nm
- Center of gravity of moving mass with 10 mm stroke 4.3 mm
- Displacement force 15 N
- Max. static moment Mz 89 Nm
- Type of mounting With internal thread
- Note on materials Free of copper and PTFE RoHS-compliant
- Housing material Wrought aluminum alloy Anodized
- Material of yoke plate Steel
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
