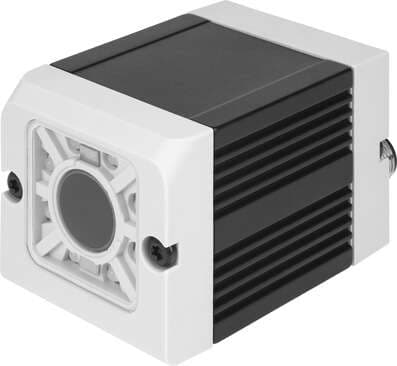

2942261 Festo Electronic Components

Product Details

• Vision sensor version
  Object sensor
• Type code
  SBSI
• Type of light
  White LED
• Max. number of test criteria/detectors
  32
• Ethernet, data transmission speed
  100 Mbit/s
• Electrical connection
  12-pin Plug
• Short-circuit protection
  For all electrical connections
• Max. current consumption
  550 mA
• Lighting type
  Integrated
• Frame rate (full image)
  50 fps
• Ethernet, supported protocols
  Ethernet/IP TCP/IP
• Number of digital outputs
  2
• Max. output current
  50 mA
• Current consumption with load-free outputs
  200 mA
• KC characters
  KC EMC
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Working distance
  6 mm - infinite
• Focus setting
  With adjusting screw
• Sensor type
  Monochrome
• Function of detectors/characteristics
  Position tracking via contour Gray value threshold
Switching input
PNP/NPN switchable
Ambient temperature
0 °C ... 50 °C
Certification
RCM compliance mark c UL us - Listed (OL)
Field of view
min. 5 x 4 mm
Max. no. of inspection programs/jobs
8
Typical cycle time
Position tracking: 30 ms BLOB: 30 ms
Number of selectable digital inputs/outputs
2
Switching output
PNP/NPN switchable
Nominal operating voltage DC
24 V
Degree of protection
IP67
Housing material
Wrought aluminum alloy, anodized
Focal length
6 mm
Lens attachment
Integrated optics
Sensor resolution
736 x 480 pixels (WideVGA)
Information on Ethernet, connection technology
Socket 4-pin
Number of digital inputs
2
Switching level
Signal 0: <= 3 V Signal 1: >= UB - 1 V
Permissible voltage fluctuations
-25 %/+10 %
Storage temperature
-20 °C ... 60 °C
Product weight
160 g
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Dimensions W x L x H
45 mm x 45 mm x 76.7 mm
Vibration resistance
as per EN 60068-2-6
Note on materials
RoHS-compliant
Cover material
ABS-reinforced
