3013541 Festo Electric Actuators

3013541 on Powermatic Associates
Festo

Part#:3013541

Alt. Part#:EGC-80-300-BS-20P-KF-0H-ML-GK

Manufacturer:Festo

Category:Electric Actuators

Product Lifecycle:Active

Product description

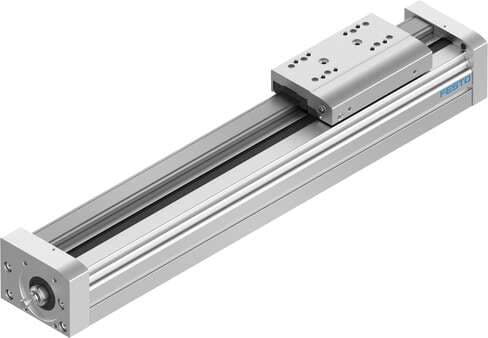

spindle axis EGC-80-300-BS-20P-KF-0H-ML-GK With recirculating ball bearing guide Working stroke: 300 mm, Size: 80, Stroke reserve: 0 mm, Spindle diameter: 15 mm, Spindle pitch: 20 mm/U

Product Details

  • Working stroke
    300 mm
  • Type code
    EGC
  • Screw diameter
    15 mm
  • Design
    Electromechanical linear axis with ball screw
  • Repetition accuracy
    ±0.02 mm
  • 2nd moment of area Iy
    1320000 mm⁴
  • Max. torque Mx
    36 Nm
  • Feed constant
    20 mm/U
  • Slide carriage material
    Steel
  • Stroke reserve
    0 mm
  • Mounting position
    Any
  • Symbol
    00991211
  • Max. speed
    1 m/s ... 1.5 m/s
  • Ambient temperature
    -10 °C ... 60 °C
  • Torsion moment of inertia It
    255000 mm⁴
  • Drive cover material
    Wrought aluminum alloy Anodized
  • Spindle nut material
    Steel
  • Size
    80
  • Guide
    Recirculating ball bearing guide
  • Max. acceleration
    15 m/s²
  • 2nd moment of area Ix
    981000 mm⁴
  • Max. force Fz
    3050 N
  • Mass moment of inertia JH per meter of stroke
    0.346 kgcm²
  • Spindle pitch
    20 mm/U
  • Motor type
    Stepper motor Servo motor
  • Duty cycle
    100%
  • 2nd moment of area Iz
    981000 mm⁴
  • Max. radial force on actuator shaft
    250 N
  • Profile material
    Wrought aluminum alloy Anodized
  • Slide material
    Wrought aluminum alloy Anodized
  • Spindle type
    Ball screw
  • Degree of protection
    IP40
  • Max. force Fy
    3050 N
  • Max. feed force Fx
    650 N
  • Material of end caps
    Wrought aluminum alloy Anodized
  • Note on materials
    RoHS-compliant
  • Moment compensator material
    Wrought aluminum alloy Anodized
  • Guide rail material
    Steel
  • Spindle material
    Steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
