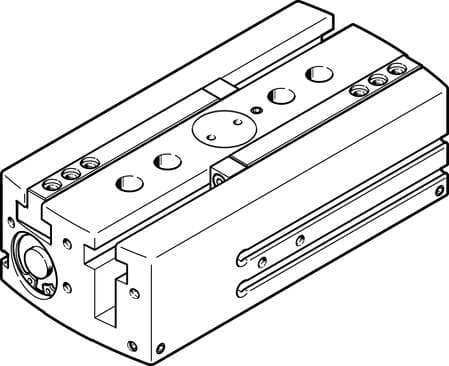

3361485 Festo Pneumatic Grippers

Product Details

• Max. interchangeability
  < 0.2 mm
• Type code
  HGPL
• Mounting position
  Any
• Design
  Twin piston Gear rack/pinion
• Min. opening time at 6 bar
  370 ms
• Mass moment of inertia
  39.95 kgcm²
• Maximum torque on gripper jaw, Mz static
  70 Nm
• Pneumatic connection
  M5
• Size
  25
• Pneumatic gripper repetition accuracy
  < 0.03 mm
• Gripper function
  Parallel
• Position sensing
  For proximity sensor
• Max. operating frequency of pneumatic gripper
  < 1 Hz
• Ambient temperature
  5 °C ... 60 °C
• Maximum torque on gripper jaw, Mx static
  100 Nm
• Max. mass per external gripper finger
  250 g
• Housing material
  Aluminum Smooth anodized
• Symbol
  00991894
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Gripping force per gripper jaw at 6 bar, opening
  206 N
Type of mounting
With internal thread and centering sleeve Via through-hole and centering sleeve
Note on materials
Free of copper and PTFE RoHS-compliant
Max. gripper jaw angular play ax, ay
< 0.2 deg
Max. gripper jaw backlash Sz
< 0.05 mm
Mode of operation
Double-acting
Operating pressure
3 bar ... 8 bar
Min. closing time at 6 bar
370 ms
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Relubrication interval for guidance elements
5 MioCyc
Gripper jaw material
Steel Hardened
Stroke per gripper jaw
60 mm
Rotational symmetry
≤ 0.2 mm
Number of gripper jaws
2
Total gripping force at 6 bar, opening
412 N
Total gripping force at 6 bar, closing
512 N
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Gripping force per gripper jaw at 6 bar, closing
256 N
Maximum torque on gripper jaw, My static
60 Nm
Maximum force on gripper jaw Fz, static
1500 N
Product weight
1780 g
