3539783 Festo Process & Media Valves
Part#:3539783
Alt. Part#:VZXF-L-M22C-M-B-G1-240-M1-V4B2T-50-10
Manufacturer:Festo
Category:Process & Media Valves
Product Lifecycle:Active
Product description

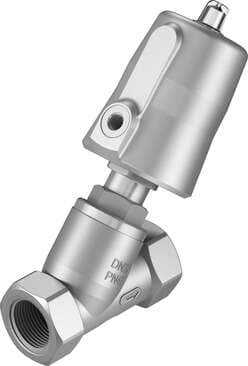

angle seat valve VZXF-L-M22C-M-B-G1-240-M1-V4B2T-50-10 Pneumatically actuated angle seat valve in stainless steel. Under seat version, safety position closed, G thread, nominal width 1". Design structure: Poppet valve with piston actuator, Type of actuati
Product Details
- Medium pressure 0 bar ... 10 bar
- Type of control Externally controlled
- Medium Vapor Neutral liquids
- Temperature of medium -40 °C ... 200 °C
- Material number, fitting housing 1.4408
- Design Poppet valve with piston actuator
- Actuation type Pneumatic
- Cable connection Threaded sleeve G1 as per DIN ISO 228
- Nominal pressure of fitting PN 40
- Pneumatic connection Internal thread G1/8
- Max. viscosity 600 mm²/s
- Valve housing material Cast stainless steel
- Product weight 1600 g
- Type of mounting Line installation
- Reset method Mechanical spring
- Symbol 00991367
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Type code VZXF
- Mounting position Any
- Nominal width 24 mm
- Exhaust air function Without flow control option
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature -10 °C ... 60 °C
- Spindle seal material PTFE
- Seat seal material PTFE
- Sealing principle Soft
- Valve function 2/2, closed, monostable
- Flow direction Under valve seat, for gaseous and liquid media
- Operating pressure 6 bar ... 10 bar
- Flow rate Kv 11 m³/h
- Drive housing material Brass, nickel-plated
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
