4562 Festo Pneumatic Fittings

Name: 4562
Brand: Festo

Part#:4562

Alt. Part#:LCK-M5-PK-4

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

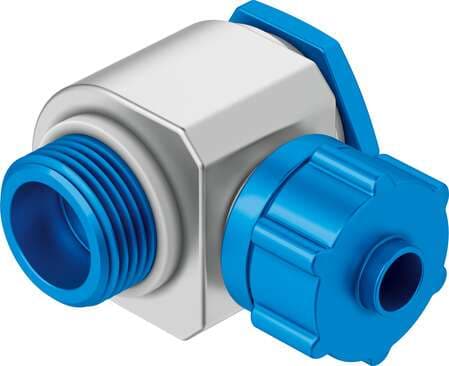

elbow quick connector LCK-M5-PK-4 Swivelling with 2 sealing rings. Nominal size: 2,4 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Pneumatic connection, port 1: Male thread M5, Pneumatic connection, port 2: for barbed connecto

Product Details

Pneumatic connection 2
for barbed fitting, inside diameter 4 mm, with nut
Type of seal on screwed trunnion
Sealing ring
Pneumatic connection 1
External thread M5
Mounting position
Any
Nominal width
2.4 mm
Note on materials
Free of copper and PTFE RoHS-compliant
Type code
LCK
Housing material
Die-cast zinc

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

4562 Related Documents

4562 DataSheet.pdf

Similar products from: Festo Pneumatic Fittings

132047

Festo

push-in fitting QS-G1/2-16-20 male thread with external hexagon. Size: Standard, Nominal size: 13 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 20

20 in stock

564817

Festo

push-in connector QB-3/8H-1/4-U male thread with external hexagon. Size: Standard, Nominal size: 0,22 ", Assembly position: Any, Design structure: Push/pull principle, Operating pressure complete temperature range: -13,8 - 145 Psi

9 in stock

153002

Festo

push-in fitting QS-1/8-6 male thread with external hexagon. Size: Standard, Nominal size: 5 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10

10 in stock

153003

Festo

push-in fitting QS-1/4-6 male thread with external hexagon. Size: Standard, Nominal size: 5 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10

19 in stock

153330

Festo

push-in L-fitting QSML-M3-3 360° orientable, male thread with external hexagon. Size: Mini, Nominal size: 0,8 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

5 in stock

186117

Festo

push-in L-fitting QSL-G1/8-6 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 4,2 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

10 in stock

Manufacturer warranty

4562 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 4562 with other Pneumatic Fittings products

Pneumatic connection 2

Type of seal on screwed t...

Pneumatic connection 1

Mounting position

Nominal width

Note on materials

Type code

Housing material

Selected product

Backordered

4562

Festo

elbow quick connector LCK-M5-PK-4 Swivelling with 2 sealing rings. Nominal size: 2,4 mm, Type of sea...

Pneumatic connection 2for barbed fitting, inside d...

Type of seal on screwed trunnionSealing ring

Pneumatic connection 1External thread M5

Mounting positionAny

Nominal width2.4 mm

Note on materialsFree of copper and PTFE RoHS...

Type codeLCK

Housing materialDie-cast zinc

30 in stock

130591

Festo

push-in fitting QSM-M5-1/4-I-U-M male thread with internal hexagon socket. Size: Mini, Nominal size:...

Pneumatic connection 2for pneumatic tubing outer d...

Type of seal on screwed trunnionSealing ring

Pneumatic connection 1External thread M5

Mounting positionAny

Nominal width2.489 mm

Note on materialsRoHS-compliant

Type codeQSM

Housing materialBrass Nickel-plated

49 in stock

153333

Festo

push-in L-fitting QSML-M5-4 360° orientable, male thread with external hexagon. Size: Mini, Nominal ...

Pneumatic connection 2for pneumatic tubing outside...

Type of seal on screwed trunnionSealing ring

Pneumatic connection 1External thread M5

Mounting positionAny

Nominal width1.7 mm

Note on materialsRoHS-compliant

Type codeQSML

Housing materialPBT

About the manufacturer

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

About the Product Category

Air fittings, also referred to as pneumatic fittings or connectors, are crucial components of pneumatic systems. They ensure safe and airtight connections between various pneumatic elements like air hoses, tubes, valves, and cylinders.

Relevant products

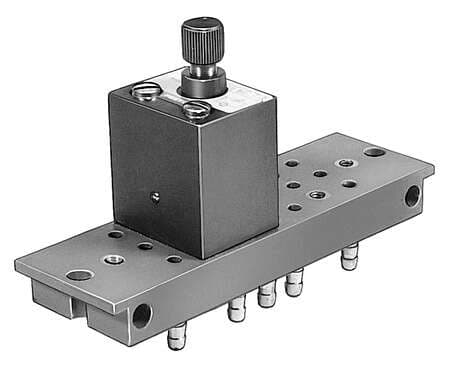

4565

Verified stock: 0

one-way flow control valve GRF-PK-3 With sub-base 2n and barbed fitting for tubing ND 3. Valve function: One-way flow control function, Pneumatic connection, port 1: PK-3, Pneumatic connection, port 2: PK-3, Adjusting element: Knurled screw, Mounting ty

Festo

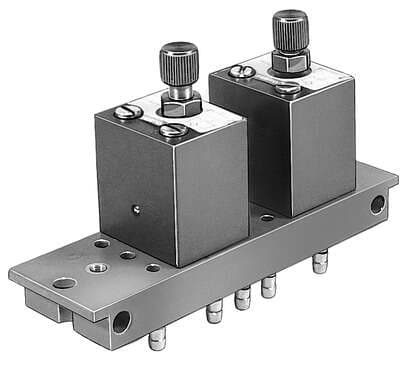

4566

Verified stock: 0

one-way flow control valve GRF-PK-3X2 With sub-base 2n and barbed fitting for tubing ND 3. Valve function: One-way flow control function, Pneumatic connection, port 1: PK-3, Pneumatic connection, port 2: PK-3, Adjusting element: Knurled screw, Mounting

Festo

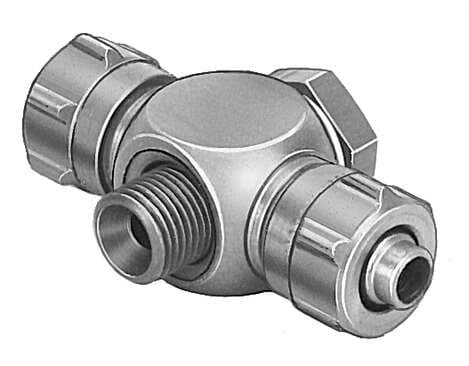

4563
