525177 Festo Directional Control Valves
Part#:525177
Alt. Part#:MHA4-MS1H-3/2G-4-K
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

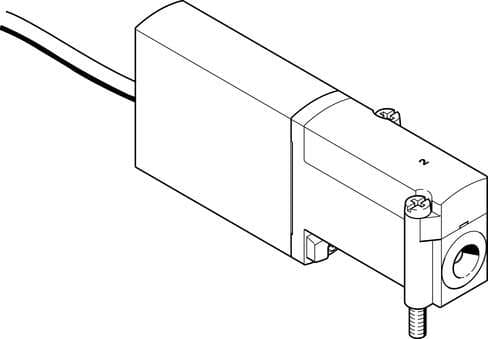

solenoid valve MHA4-MS1H-3/2G-4-K individual valve, fast switching, with cable. Valve function: 3/2 closed, monostable, Type of actuation: electrical, Width: 18 mm, Standard nominal flow rate: 400 l/min, Operating pressure: -0,9 - 8 bar
Product Details
- KC characters KC EMC
- Operating pressure -0.9 bar ... 8 bar
- Degree of protection IP65
- Type code MH4
- Manual override Non-detenting
- Operating pressure, reversible -0.9 bar ... 1 bar
- Switching time variation at 1 Hz and above 0.3 ms
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Product weight 270 g
- Type of mounting On PR rail
- Material of screws Steel Galvanized
- Width 18 mm
- Reset method Mechanical spring
- Width dimension 24 mm
- Reverse polarity protection Bipolar
- Max. switching frequency 210 Hz
- Tolerance for ON switching time +10%/-30%
- Duty cycle 100%
- Temperature of medium -5 °C ... 40 °C
- Pneumatic connection 1 Sub-base
- Pneumatic connection 3 Sub-base
- Material of cable sheath PUR
- Valve function 3/2, closed, monostable
- Lap Underlap
- Standard nominal flow rate 400 l/min
- Nominal width 4 mm
- Mounting position Any
- Flow direction Reversible with restrictions
- Additional functions Spark suppression Protective circuit
- On switching time 3.5 ms
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Pneumatic connection 2 Sub-base
- Electrical connection Cable
- Housing material Die-cast zinc Coated
- Actuation type Electrical
- Design Pressure-relieved poppet valve
- Certification RCM compliance mark c UL us - Recognized (OL)
- Sealing principle Soft
- Symbol 00991308
- Switching time off 3.5 ms
- Coil characteristics 24 V DC: low-current phase 2.125 W, high-current phase 8.5 W
- CE marking (see declaration of conformity) As per EU EMC directive
- Ambient temperature -5 °C ... 40 °C
- Seals material HNBR NBR
- Pneumatic working port Sub-base
- Operating voltage 24V DC
- Exhaust air function With flow control option
- Type of control Direct
- Tolerance for switching time off +10 %/-40 %
- Permissible voltage fluctuations +/- 10 %
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Cable length 2.5 m
- Note on materials Free of copper and PTFE RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
