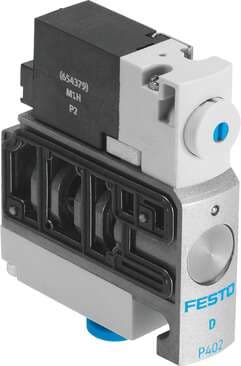

527550 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Actuation type
  Electrical
• Pneumatic working port
  M5
• Operating voltage
  22V DC
• Manual override
  Detenting Non-detenting
• Pilot pressure MPa
  0.3 MPa ... 0.7 MPa
• Reset method
  Pneumatic spring
• Exhaust air function
  Without flow control option
• Symbol
  00991682
• Valve function
  5/2, monostable
• Standard nominal flow rate
  170 l/min
• Sealing principle
  Soft
• Flow direction
  Non-reversible
• On switching time
  10 ms
• Operating pressure
  -0.9 bar ... 7 bar
• Valve size
  10 mm
• Degree of protection
  IP40
• Mounting position
  Any
• Max. positive test pulse with 0 signal
  400 µs
• Design
  Piston gate valve
Type code
CPVSC1
Type of control
Pilot-controlled
Max. negative test pulse on 1 signal
200 µs
Pilot pressure
3 bar ... 7 bar
Switching time off
10 ms
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Electrical connection
2-pin Plug
Pneumatic connection 2
M5
Coil characteristics
22 V DC: 1.0 W
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Product weight
30.5 g
Pilot exhaust air port 82/84
Common port
Note on materials
RoHS-compliant
Pilot air supply port
External
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Type of mounting
With through-hole
Pneumatic port 3/5 combined
Common port
Seals material
NBR
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
1 - Low corrosion stress
Housing material
Die-cast aluminum
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 1
Common port
Pneumatic connection 4
M5
