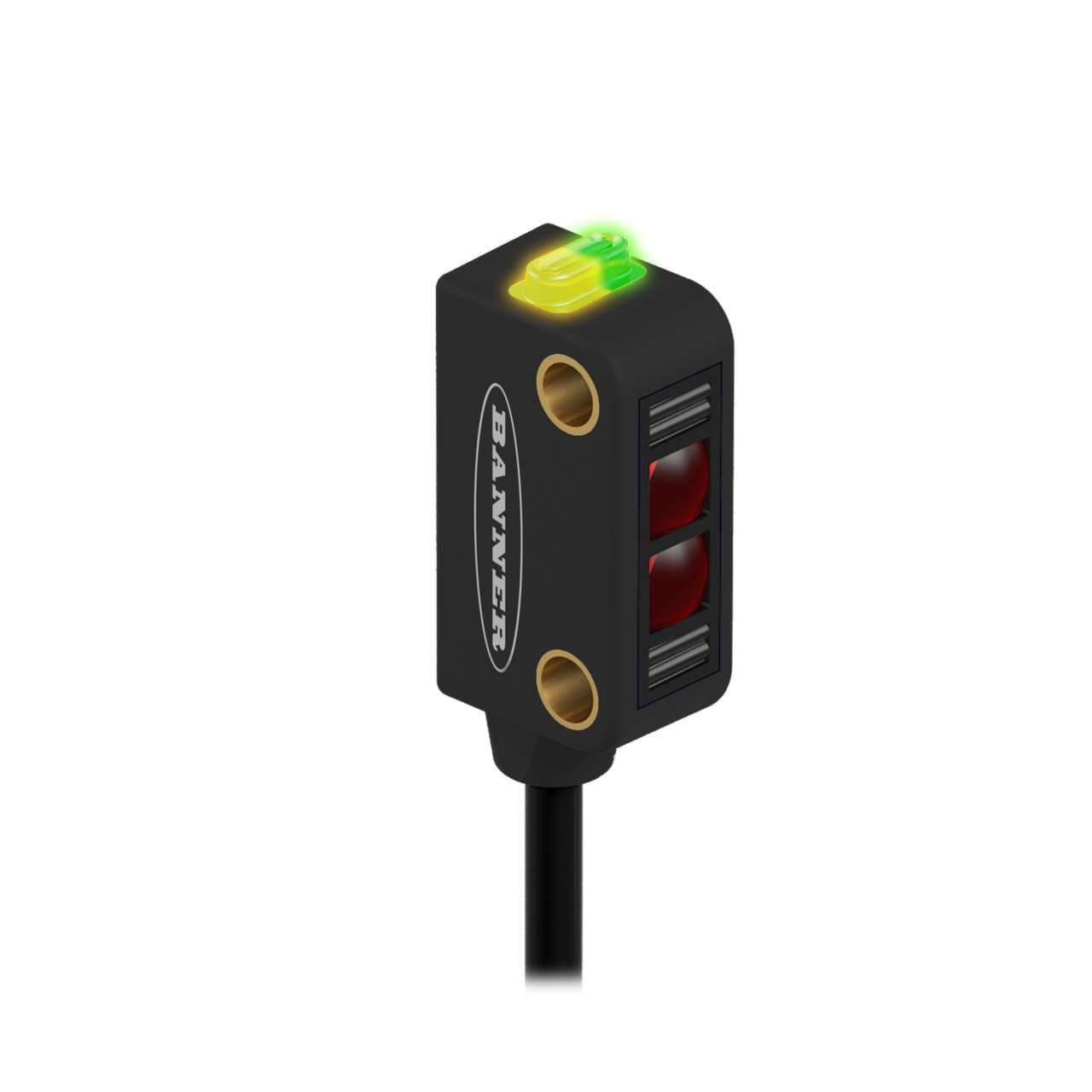

Q12AP6FF50Q3 Banner Proximity Sensors
Part#:Q12AP6FF50Q3
Alt. Part#:76163
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q12 Series: Fixed-Field; Range: 50 mm; Input: 10-30 V dc; Output: LO; 1 PNP; 150 mm (6 in) 3-pin M8 Pigtail QD
Product Details
- Weight 22.6796 g
- Country Of Origin MX
- Wavelength 640 nm
- Product series / family name WORLD-BEAM series
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Primary brand Banner Engineering
- Functions Fixed-field photo-electric sensor green LED (power ON) yellow LED (signal)
- Light Color Visible red
- Sub-range name Q12 series
- Shape Rectangular
- Digital outputs 1 x digital output (PNP transistor)
- Design background suppression system
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 3-pin Pico-style M8 connector
- Ambient air temperature for operation -20...+55 °C
- Sensing distance 50mm
- Response time 0.7ms / 0.0007 s
- Operating mode Light-ON
- Degree of protection IP67
- Compliant with standard(s) cURus CE
- Material thermoplastic housing Polycarbonate lns.
- Order code / Manufacturer SKU 76163
- Cable Length (m) 0.15
- Operation Light Operate
- Housing Style Rectangular
- Input/Output Discrete
- Max Sensing Distance (mm) 50
- Connection Pigtail QD
- Small Visible Spot LED
- Sensing Beam Visible Red LED
- Power DC
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Power Supply/Supply Voltage 10-30 V dc
- Outputs PNP
- Output response time (ms) 0.85 ON/OFF
- Special Feature: Intrinsically Safe No
- Special Feature: Water Detection No
- Delay at Power-up (ms) 120
- Special Feature: Remote Teach No
- Sensing Beam Wavelength 640
- Max Op. Relative Humidity [%] 95% @ 50°C
- Repeatability (µs) 175
- Feature: Audible No
- Lens Material Polycarbonate
- Feature: Chemical Resistant No
- Adjustments N/A
- IO Link No
- Barrel Diameter (mm) N/A
- Indicator LEDs
- Opposed Mode Emitter/Receiver N/A
- Feature: Timing (Hold/Delay) No
- DeviceNet No
- Feature: Hazardous Area No
- Feature: Encapsulated No
- Sensing Mode (General) Proximity
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 55
- Quick Disconnect Type M8 (Pico)
- Number of Pins 3
- IP Rating IP67
- Min Op. Temp. (°C) -20
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q12AP6FF50Q3 on Powermatic Associates is $112.00. Order now.
About the product
Banner Engineering Q12AP6FF50Q3 is a fixed-field photo-electric sensor designed with a background suppression system. It operates within an ambient air temperature range of -20 to +55°C and is housed in a thermoplastic with a polycarbonate lens. This sensor is part of the Q12 series and features a rectangular shape. It is pre-wired with a 6" / 150mm pigtail terminated with a 3-pin Pico-style M8 connector for connectivity. The Q12AP6FF50Q3 offers a sensing distance of 50mm and emits visible red light with a wavelength of 640 nm. It operates in Light-ON mode and includes 1 x digital output (PNP transistor) with a response time of 0.7ms / 0.0007 s. This sensor is designed for a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and is protected to a degree of IP67, ensuring its operation in various environmental conditions.
