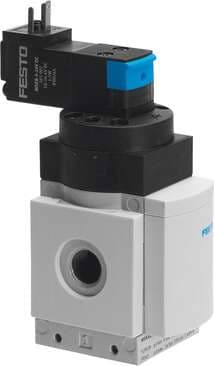

529519 Festo Compressed Air Preparation Units
Part#:529519
Alt. Part#:MS4-DE-1/4-V110
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description
soft-start valve MS4-DE-1/4-V110 Electrical, for gradual pressure build-up, direction of flow: from left to right. Type of actuation: electrical, Assembly position: Any, Manual override: (* detenting, * Pushing), Design structure: Piston seat, Type of res
Product Details
- Type of mounting Optionally: With accessories
- Actuation type Electrical
- Manual override Detenting Non-detenting
- Reset method Mechanical spring
- b-value 0.45
- Standard nominal flow rate 2000 l/min
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Product weight 263 g
- Type code MS4-DE
- Pilot air supply port Internal
- C value 9.6 l/sbar
- Duty cycle 100%
- Temperature of medium -10 °C ... 60 °C
- Electrical connection Form C Rectangular design
- Signal status display With accessories
- Seals material NBR
- Mounting position Any
- Design Piston seat
- Flow direction Non-reversible
- Switching position indication with accessories
- Coil characteristics 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Certification c UL us - Recognized (OL)
- Housing material Die-cast aluminum
- For use in the food industry See supplementary material information
- Valve function 2/2
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 2 G¼
- Type of control Pilot-controlled
- Symbol 00991501
- Operating pressure 4 bar ... 14 bar
- Degree of protection IP65
- Pneumatic connection 1 G1/4
- Note on materials Free of copper and PTFE RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
529519 Related Documents
Similar products from: Festo Compressed Air Preparation Units
Manufacturer warranty
529519 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 529519 with other Compressed Air Preparation Units products
Type of mounting
Actuation type
Manual override
Reset method
b-value
Standard nominal flow rat...
Information on operating ...
Product weight
Type code
Pilot air supply port
Selected product
529519
Festo
soft-start valve MS4-DE-1/4-V110 Electrical, for gradual pressure build-up, direction of flow: from ...
Type of mountingOptionally: With accessories
Actuation typeElectrical
Manual overrideDetenting Non-detenting
Reset methodMechanical spring
b-value0.45
Standard nominal flow rate2000 l/min
Information on operating and pilot mediaOperation with oil lubricati...
Product weight263 g
Type codeMS4-DE
Pilot air supply portInternal
542578
Festo
on-off valve MS4-EE-1/4-10V24 Electrical, direction of flow: from left to right. Design structure: P...
Type of mounting-
Actuation typeElectrical
Manual overrideNon-detenting
Reset methodMechanical spring
b-value-
Standard nominal flow rate-
Information on operating and pilot media-
Product weight-
Type codeMS4-EE
Pilot air supply portInternal
541282
Festo
on-off valve MS4N-EM1-1/4-S-Z Manual, with silencer, direction of flow: from right to left. Design s...
Type of mounting-
Actuation typeManual
Manual override-
Reset method-
b-value-
Standard nominal flow rate-
Information on operating and pilot media-
Product weight-
Type codeMS4N-EM1
Pilot air supply port-
About the manufacturer
Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
About the Product Category
Also referred to as an FRL unit (Filter, Regulator, Lubricator), an air preparation unit is utilized to treat compressed air. It accomplishes this by eliminating impurities, managing pressure, and adding specific quantities of oil for lubrication.
