530090 Festo Couplings

530090 on Powermatic Associates
Festo

Part#:530090

Alt. Part#:EAMC-40-66-11-11

Manufacturer:Festo

Category:Couplings

Product Lifecycle:Active

Product description

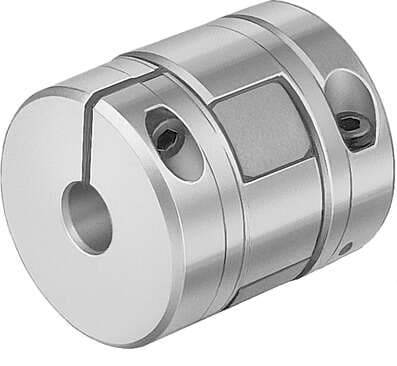

coupling EAMC-40-66-11-11 For electromechanical drive with stepper motor Holder diameter 1: 11 mm, Holder diameter 2: 11 mm, Size: 40, Nominal length: 66 mm, Assembly position: Any

Product Details

  • Size
    40
  • Type code
    EAMC
  • Relative air humidity
    0 - 95 %
  • Ambient temperature
    -25 °C ... 60 °C
  • Max. rotational speed
    6500 1/min
  • Mass moment of inertia
    42.3 kgmm²
  • Note on materials
    RoHS-compliant
  • Diameter of holder 1
    11 mm
  • Mounting position
    Any
  • Transferable torque
    21 Nm
  • Diameter of holder 2
    11 mm
  • Nominal length
    66 mm
  • Storage temperature
    -25 °C ... 60 °C
  • Product weight
    139 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

530090 Related Documents

530090 DataSheet.pdf

Manufacturer warranty

530090 Festo
