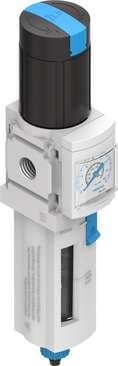

531209 Festo Compressed Air Preparation Units

Product Details

• Symbol
  00991587
• Condensate drain
  Fully automatic
• For use in the food industry
  See supplementary material information
• Max. condensate volume
  19 ml
• Type code
  MS4N-LFR
• Actuator lock
  Rotary knob with detent can be closed with accessories
• Operating pressure
  2 bar ... 12 bar
• Max. pressure hysteresis
  0.25 bar
• Storage temperature
  -10 °C ... 60 °C
• Seals material
  NBR
• Separating disc material
  POM
• Mounting position
  Vertical +/- 5°
• Controller function
  Outlet pressure constant With return flow function
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas
• Ambient temperature
  5 °C ... 60 °C
• Product weight
  275 g
• Compressed air filter material
  PE
• Material of bowl
  PC
• Size
  4
• Grade of filtration
  40 µm
Pressure gauge
with pressure gauge
Standard nominal flow rate
1500 l/min
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pneumatic connection 1
NPT1/4-18
Material of operator panel
PA POM
Housing material
Die-cast aluminum
Series
MS
Design
Filter regulator with pressure gauge
Bowl guard
Plastic bowl guard
Pressure regulation range
0.5 bar ... 12 bar
Air quality class at the output
Compressed air as per ISO 8573-1:2010 [7:4:4]
Type of mounting
Optionally: With accessories
Material of sub-base
Die-cast aluminum
Diaphragm material
NBR
Temperature of medium
5 °C ... 60 °C
Pneumatic connection 2
NPT1/4-18
Note on materials
RoHS-compliant
