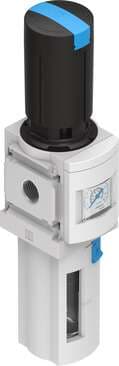

531282 Festo Compressed Air Preparation Units

Product Details

• Size
  6
• Type code
  MS6N-LFR
• Condensate drain
  Manually rotating
• Bowl guard
  Plastic bowl guard
• Standard nominal flow rate
  4000 l/min
• Max. pressure hysteresis
  0.25 bar
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type of mounting
  Optionally: With accessories
• Seals material
  NBR
• Grade of filtration
  5 µm
• Controller function
  Outlet pressure constant With secondary exhausting
• Pressure regulation range
  0.5 bar ... 12 bar
• Ambient temperature
  -10 °C ... 60 °C
• Material of operator panel
  PA POM
• Material of bowl
  PC
• Actuator lock
  Rotary knob with detent can be closed with accessories
• Pressure gauge
  with pressure gauge
• Air quality class at the output
  Compressed air as per ISO 8573-1:2010 [6:4:4]
• Pneumatic connection 2
  1/2 NPT
• Diaphragm material
  NBR
Series
MS
Design
Filter regulator with pressure gauge
Symbol
00991589
Operating medium
Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas
Temperature of medium
-10 °C ... 60 °C
Pneumatic connection 1
1/2 NPT
Compressed air filter material
PE
Separating disc material
POM
For use in the food industry
See supplementary material information
Mounting position
Vertical +/- 5°
Max. condensate volume
38 ml
Operating pressure
0.8 bar ... 20 bar
Storage temperature
-10 °C ... 60 °C
Product weight
875 g
Note on materials
RoHS-compliant
Housing material
Die-cast aluminum
