531493 Festo Compressed Air Preparation Units
Part#:531493
Alt. Part#:MS4N-LF-1/4-CRV
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

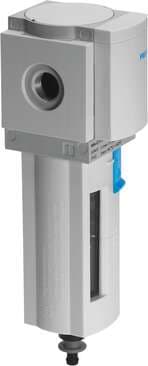

filter MS4N-LF-1/4-CRV 5 µm filter, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size: 4, Series: MS, Assembly position: Vertical +/- 5°, Grade of filtration: 5 µm, Condensate drain: fully auto
Product Details
- Type code MS4N-LF
- Design Sinter filter with centrifugal separator
- Operating medium Compressed air as per ISO 8573-1:2010 [7:9:-] Inert gas
- Temperature of medium 5 °C ... 60 °C
- Pneumatic connection 2 NPT1/4-18
- Separating disc material POM
- For use in the food industry See supplementary material information
- Condensate drain Fully automatic
- Operating pressure 2 bar ... 12 bar
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [6:8:4]
- Type of mounting Optionally: With accessories
- Seals material NBR
- Series MS
- Max. condensate volume 19 ml
- Standard nominal flow rate 1300 l/min
- Product weight 189 g
- Pneumatic connection 1 NPT1/4-18
- Housing material Die-cast aluminum
- Mounting position Vertical +/- 5°
- Bowl guard Plastic bowl guard
- Storage temperature -10 °C ... 60 °C
- Note on materials Free of copper and PTFE RoHS-compliant
- Compressed air filter material PE
- Size 4
- Grade of filtration 5 µm
- Symbol 00991520
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Ambient temperature 5 °C ... 60 °C
- Material of sub-base Die-cast aluminum
- Material of bowl PC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
