531538 Festo Compressed Air Preparation Units

531538 on Powermatic Associates
Festo

Part#:531538

Alt. Part#:MS6N-LF-1/2-CUM

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

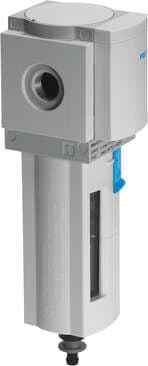

filter MS6N-LF-1/2-CUM 5 µm filter, metal bowl, manual condensate drain, direction of flow: from left to right. Size: 6, Series: MS, Assembly position: Vertical +/- 5°, Grade of filtration: 5 µm, Condensate drain: manual rotary

Product Details

  • Series
    MS
  • Symbol
    00991519
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 2
    1/2 NPT
  • Seals material
    NBR
  • Type code
    MS6N-LF
  • Bowl guard
    Integrated as metal bowl guard
  • Standard nominal flow rate
    3200 l/min
  • Temperature of medium
    -10 °C ... 60 °C
  • Type of mounting
    Optionally: With accessories
  • Material of bowl
    Wrought aluminum alloy
  • Size
    6
  • Mounting position
    Vertical +/- 5°
  • Max. condensate volume
    38 ml
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Product weight
    820 g
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Compressed air filter material
    PE
  • For use in the food industry
    See supplementary material information
  • Grade of filtration
    5 µm
  • Operating pressure
    0 bar ... 20 bar
  • Pneumatic connection 1
    1/2 NPT
  • Separating disc material
    POM
  • Design
    Sinter filter with centrifugal separator
  • Condensate drain
    Manually rotating
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [6:8:4]
  • Storage temperature
    -10 °C ... 60 °C
  • Housing material
    Die-cast aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

531538 Related Documents

531538 DataSheet.pdf
